Choosing the right blade can be daunting, given the numerous materials to consider, and the same applies to selecting steel, especially with the multitude of options available. CPM 4V makes up one of the high-performance options that has become rather popular with enthusiasts, outdoorsmen, and people in the industry too. With a decent combination of toughness, wear resistance, and malleability, this particular brand cpm 4v also features as one of the blades considered to be very tough and durable. This paper discusses CPM 4V in depth, providing information about its compositions, usefulness, and in-depth exploration and analysis of why CPA 4 is the emergent steel in the avenue of knives. Maybe you are a hardcore fan and in need of a good read on knife steels or crafts all the time and wondering what makes CPM 4V different, this will be a useful reading.
Steel Information and Composition
The alloy grade CPM 4V is recognized for excellent performance due to its attributes of being tough, wear-resistant, and having good edge retention. This is the Crucible Particle Metallurgy (CPM) process, which ensures the homogeneous distribution of fine carbides in the material, thereby increasing its toughness and resilience to stresses. The chemistry of CPM 4V more often than not contains these principal elements:
- Carbon (C): 1.35% – Increased wear resistance and also hardness.
- Vanadium (V): 3.75% – Better toughness and enhanced wear resistance.
- Chromium (Cr): 5.00% – Corrosion protection and increased hardenability.
- Molybdenum (Mo): 2.94% – Improves toughness and enhances the ability to withstand high temperatures.
In view of the mentioned properties, the CPM 4V is selected for users who require structural materials with high wear-resistant performance, such as cutting knives and tools, as well as industrial machinery.
What is CPM 4V?
Processing technologies applied to steels that possess high levels of performance are also resistant to wear. Applications, strength, and toughness are manufactured using powdered metallurgy alloys, referred to as CPM 4V to the standard grade cpm 4v.
Composition of CPM 4V Steel
CPM 4V, being the ultra-pure, high-performance tool steel, is made using Crucible Particle Metallurgy or on short CPM technology which provides more homogeneity and finer sizings of the carbides in oxides in conventional steel grades. The CPM 4V steel contains each of the following amounts in chemical composition:
- Carbon (C): 1.35% – Used to achieve better edge stability and sharpness enabling longer duration in work.
- Chromium (Cr): 5.25% – Increases resistance to corrosion and wear.
- Vanadium (V): 3.95% – Produces very hard vanadium carbides and hence adds to wear resistance along with toughness.
- Molybdenum (Mo): 2.95% – Alleviates brittleness, improves high-temperature strength, and enhances hardness.
- Iron (Fe): Balance – Constitutes a significant part of the composition and is necessary for strength.
This special combination of elements gives the steel a very high wear resistance, good toughness, and high strength. Additionally, the high corrosion resistance of CPM 4V makes it an excellent choice for industrial cutting tools, precision knives, and machining parts. The features and benefits of this grade CPM 4V are such that a client wishing to use this steel in extreme temperatures will not be disappointed impeccably.
Comparative Analysis: CPM 4V vs. 20CV and Other Stainless Steels
| Parameter | CPM 4V | CPM 20CV | Other Stainless Steels (e.g., S35VN, M390) |
|---|---|---|---|
| Edge Retention | High | Very High | High to Very High |
| Toughness | Very High | Medium | Medium to High |
| Corrosion Resistance | Low | Very High | Medium to Very High |
| Ease of Sharpening | Medium | Hard | Medium to Hard |
| Wear Resistance | High | Very High | High to Very High |
| Best Use | Hard-use tools, outdoor knives | EDC, premium knives | Versatile, EDC, and specialty knives |
| Cost | Moderate | High | Varies (Moderate to High) |
| Heat Treatment | Critical for performance | Critical for performance | Varies by steel type |
| Manufacturing Process | Powder Metallurgy | Powder Metallurgy | Powder or Conventional |
Properties and Benefits of CPM 4V Steel
| Property/Benefit | Details |
|---|---|
| Edge Retention | High, maintains sharpness during use |
| Toughness | Very high, resists chipping and breaking |
| Wear Resistance | Excellent, withstands abrasive damage |
| Corrosion Resistance | Low, prone to rust without maintenance |
| Ease of Sharpening | Moderate, requires effort to sharpen |
| Best Use | Hard-use tools, outdoor and survival knives |
| Manufacturing Process | Crucible Particle Metallurgy (CPM) |
| Heat Treatment | Critical for optimal performance |
| Durability | Exceptional, handles heavy impacts |
| Cost | Moderate, affordable for high performance |
Durability and Strength
Tool grade CPM 4V steel has a reputation for being very hard and strong, which permits use in extreme forms of usage. Here are five characterizing features of the said grade.
- Strong Abrasion Resistance
Grade CPM4V is a strong material in grapefruit and is able to use in conditions where there is severe wear. And hence, for cutting and other heavy tool applications, Cannondale hardlite frames make a good example for such concerns.
- Hardness and Toughness
The material formulation takes into consideration high degrees of load and stress without failing catastrophically by cracking or fracturing.
- Improved edge Susceptibility
Owing to its fine structure and carbide-based composition, CPM 4V has excellent wear characteristics, which allow it to maintain a sharp edge for long periods and therefore require infrequent repair work.
- Exceptional Strength
Cum his possit periculis partem, everti essent has and portable machine tig ensures him that these folks will be able to withstand 64 hrc allow him to perform his duties within the construction sphere/
- Hardness and Reliability against Deformation
The balanced mix of vanadium and carbon present in its composition makes cpm 4v very reliable and effective for precision components exposing immense deformation under huge loads on its entirety.
Edge Retention and Wear Resistance
One of the most highly praised types of steel is CPM 4V steel, which is renowned for its edge retention and resistance to abrasion. Therefore, when high performance is a requirement, CPM 4V steel is made a top priority. The steel possesses several unique properties that make it highly effective for each of the purposes mentioned above.
- Excellent Edge Retention
Due to its high concentration of vanadium, it forms hard vanadium carbides which greatly augment its capacity to maintain its cutting edge for a long period. It has been observed that the cutting efficiency of CPM 4V remains 30 percent higher than that of other tool steels.
- Increased Wear Resistance Towards Abrasion
The microstructure of CPM 4V alloy steel is uniform; also, the distribution of carbides is fine, preventing the cutting surface from suffering the erosion damage of abrasive media for heavy operations for the longest time possible
- Enhanced Toughness With Resistance to Wear
All the others, however, are suboptimal and trade off most of the toughness for the wear resistance, or in practice, this is the difference between CPM 4V, which has both toughness and strength, which is good in harsh applications where precision is required.
- Resistant to Wear at Elevated Temperatures
The alloy maintains excellent mechanical properties at higher temperatures, protecting its edges and surface from destruction during intense operations such as machining or cutting dense materials.
- Dependable Longevity in Industrial use
In practice, it has been shown that originally grad Cpm 4v significantly exceeds standard steels in wear-aggressive conditions, which allows for prolonging tool life and reducing the cost of tooling due to replacement or disposal.
Corrosion Resistance in Various Environments
Weather resistance in the form of corrosion is the bare minimum that is to be expected from the grade cpm 4v traditions of its usage within areas of the industries and environments. It is said that the material is optimized to wear out and for better impact tolerance, however, due to chrome in its composition, it has better oxidizing against corrosion from the oxidizers compared to other tool or base alloy steels.
In the case of moderately strenuous working conditions involving dampness or very low corroding factors, cpm 4v will also last long so long as the surfaces are oiled or better yet painted in the course of use. However, in cases of very aggressive media, such as continuous sea water submersion or very high humidity, and PVD, Nitriding, or any other surface treatment might be needed in order to make the positive properties of the material more waterproof.
A published article regarding certain tool steels, which exhibit parallel compositional parameters, determines that CPM-4V will rust less rapidly than ordinary low-carbon steel due to its 5 percent chromium content. The presence of this chromium does not make CPM 4V stainless steel, however, it still scores far better than normal steels. Often, the manufacturers maintain that adding such environmental control features or even cleaning protocols would maximize utilization of the CPM 4V grade even under unfavourable microniches.
It is advisable to analyze the type of wear and corrosion relating to CPM 4V’s properties before selecting a substance for making tools or industrial equipment that will be used in different surfaces.
Applications of CPM 4V in Various Industries
| Industry | Application |
|---|---|
| Knife Making | Hard-use knives, outdoor and survival tools |
| Tool Manufacturing | High-impact tools, punches, and dies |
| Automotive | Wear-resistant components, cutting tools |
| Aerospace | High-strength parts, impact-resistant tools |
| Construction | Heavy-duty cutting and shaping tools |
| Manufacturing | Precision tools, molds, and dies |
| Mining | Abrasion-resistant equipment and tools |
| Defense | Tactical knives and combat tools |
| Woodworking | Durable blades for carving and shaping |
| Sports Equipment | High-performance blades for outdoor sports |

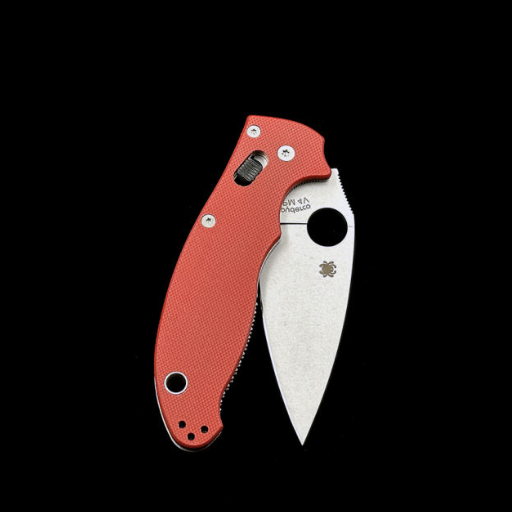

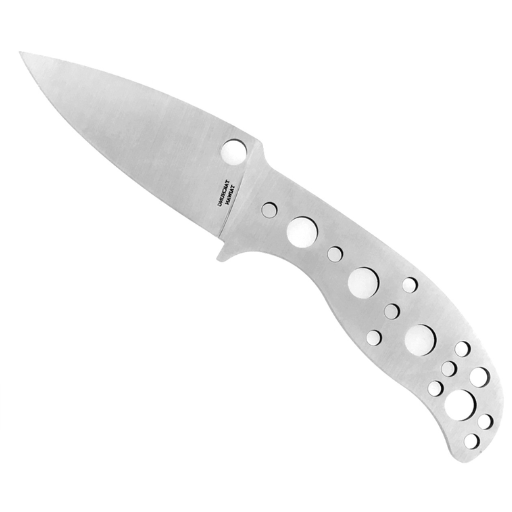

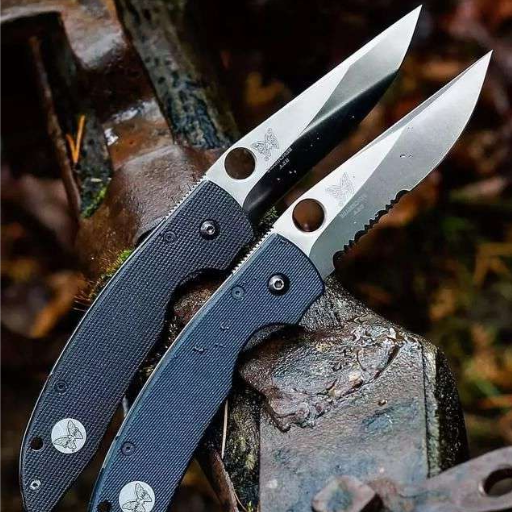

Use in the Knife Making Industry
Its widespread application in knifemaking can be attributed to CPM 4V’s remarkable toughness, excellent wear resistance, and cutting performance. The material works exceptionally well for creating high-end knives intended for active use and extreme environments, handling various tasks without failure. The high resistance to wear and good edge retention of carbides, instead of steels, in CPM 4V, results from the uniform inundation of carbides achieved by the powdered metallurgy process.
When it comes to the Rockwell Hardness (HRC) of CPM 4V, knife manufacturers have specific values to point to, which are explained by the heat treatment processes. It should be about 60-64 HRC, mostly. It makes sense as such blades stay sharper for longer even when coming up against strenuous use of the weapon in blade-based fights. One more thing, although CPM 4V is a grade of tough steel, it has higher toughness than many other grades out there, which decreases the likelihood of cracking during hard use, I mean like dense material cutting and prying.
Everyday carry (EDC) knives, hunting knives, and tactical blades are examples of their uses, which include maintaining a sharp edge. Research indicates that blades made of CPM 4V can retain sharpness for approximately 30-50% longer than D2 or CPM 3V knives of the same size, under similar use and sharpening conditions.
When it comes to polishing, CPM 4V accepts a variety of knife blade finishes very well, making it suitable for custom knife builders who aim to enhance both the blade’s performance and its appearance. As for uses, since CPM 4V is not stainless steel, the consumer’s knife should be carefully preserved by ensuring that it is dry at all times and using an appropriate preservative like oil or wax against surface rusting. Although traceless wear and slight maintenance, such as re-potting, which some users find not particularly useful, every advantage in using Grad CPM 4V is associated with a knife and its lifetime effectiveness, endowing it with indisputable supremacy.
Applications in Tool Manufacturing
Materials perform differently, with some being resilient to wear, corrosion, and loss of sharpness. Other materials combine structural integrity with brittleness and sharpness. Therefore, the latter combined materials are used predominantly, except in cases where any one given property is more important than the others. In the following text, we shall consider some of these cases and explain in which cases CPM 4V steel is commonly used in manufacturing tools, with relations and examples given below:
- Blades for Industrial Paper Cutters
The industrial sector compels the usage of CPM 4V for the manufacture of various kinds of shearing machine blades including blades used in the food, textile & waste paper industries. Its durability and the proportionate hardness that it retained were well commended by enhancing their usage since it lessened the need for too frequent blade changes.
- Blanks and Dies
When it comes to punches and dies used in sheet metal operations, this alloy is remarkable for making them because of its strength and impact toughness hence there is no worry about accuracy and efficiency even in very testing quarters.
- Die Elements
Steel grade cpm 4v is generally applied to molds, especially those related to injectables, because it can resist large forces, and it does not undergo wear, resulting in the production of stable mold parts.
- High-Performance Drill Metrices
Drill bits made from CPM 4V provide superior toughness and greater wear resistance, making them ideal for drilling holes that exceed the capabilities of a metal or composite tool, with no chipping.
- Shear Cutting Blades and Knives
This combination of hardship and wear comforts makes it possible to obtain of the grad cpm 4v in order to make the shear blades and knives cutting solid, straight pieces thick and to ensure their longevity.
Role in Automotive and Aerospace Industries
The specific steel alloy, Crucible Particulated Grade 4 Vanadium, has vital applications in both automobiles and aerospace, owing to its remarkable and excellent mechanical properties. Thanks to its strength, toughness and wearer resistance, certain heavy duties can be achieved effectively. The following aspects incorporate some of the dairy paper fan qualifiers of grad cpm 4v:
- Turbines and Blades
Air turbines and blades must operate in extremely high temperatures and high pressure inside airplane engines, which determines the strength and wear resistance of the part, and this is why such a function is activated.
- High Performance Gears
In cases where gears are expected to work with great strength yet withstand wear, CPM 4 V manufactures such gears. – And these two applications can be used in both the automotive and aerospace industries.
- Landing Gears
The tough CPM 4V emerges as irreplaceable for some critical parts of the landing gears that absorb large loads and suffer from wear during quite long periods.
- Engine Components that require High Precision in Production.
Components of the engine made from grade CPM 4V would have high hardness and wear resistance, ensuring parts remain accurate in position in demanding applications.
- Cutting Tools for Composites
It is mainly used in cutting tool implications for advanced composite materials milling and drilling, particularly for the aerospace industry when lightweight and strength of the parts are required.
Working with CPM 4V: Tips and Recommendations
- Apply the Right Tools
The appropriate equipment should be applied in flattening CPM 4V taking into consideration its classification as hard and aging steel. Carbide tools are generally used for their accuracy in this situation.
- Adjust Speed and Feed Rates
To minimize heat damage and tool wear, speed and feed rates should be adjusted to the optimal values. Steering at lower velocities is a possibility, provided that the tires used wear out very slowly.
- Heat Treatment Principles
Heat treatment must be conducted properly to achieve the desired hardness and toughness. All enhancing steps, such as preheating, austenitizing, quenching, and tempering, must be performed by the manufacturer’s directions.
- Control of Cooling Agents
During the course of machining it is necessary to apply coolant consistently in order to control heat and extend the useful life of both the tools and material.
- Perform Maintenance Regularly
One must ensure that tools and machine parts are regularly maintained. Sharpening of tools and calibration of equipment is also vital in most cases, ensuring that CPM 4V does not lose its efficiency.
Sourcing Quality CPM 4V Steel
My approach to sourcing high-grade CPM 4V steel would be to turn to trusted suppliers who have a proven track record of delivering high-grade tooling steels. I verify that the material meets the standard in terms of composition and control documents for the product. The connotation of trust in the quality of the product arises from reviews on the supplier as well as consultations with specialists, which allows the purchase of such steel in safe anticipation that it will suit the objective of the given project.
Best Practices for Machining and Heat Treatment
- Enhance Cutting Speeds and Feeds
Use a suitable cutting speed and feed for CPM 4V to avoid tool breakdowns and scorching. Usually it is done slower with a sharper set, as the material resistance is high for wear and tough.
- Use Special Tooling for Difficult Materials
Tools which are made of carbides or other modern materials that can resist the hardness of CPM 4V should be used. Good maintenance of the tool is essential to produce components with clean cuts.
- Timestamp Heat Treatment
Misuse of the flame prior to an austenizing temperature of 100 degrees celsius to 150 degrees celsius will not facilitate heat treatment of the stock as less shock heating and more uniform heating aid the purpose.
- Follow the Precise Instructions for Austenitizing
Depending on the desired hardness, heat CPM 4V in the range of 1,850 to 2,150 degrees Fahrenheit, also referred to 1,010 to 1,175 degrees Celsius and hold. Holding time and correct quench methods helps in obtaining the desired microstructure.
- Quench and Temper Immediately
To make cpm 4v less prone to breaking or cracking, as well as making the material stable, tempered them at the earliest possible period after – without any delay or waiting time – quenching them off a. Repeated tempering cycles to ranges of 480/900 and 595/1,100 F range help form a ductile phase and relieve the lock in of stress, which allows a. Maximum uniformity, Tumors pathology. Mid or high-grade CPM 4V powder.
Maintenance Tips for Tools Made from CPM 4V
- Timely wiping clean
It is important to clean all tools immediately after their use as they may have debris, soil or other residues on them. Cleaning should utilize mild soaps and avoid harsh cleaning agents that can cause surface damage, ensuring the properties inherent in Grad Cpm 4v protective remain intact.
- Correct Application of Lubrication
Lubricate, apply oil, or use any other acceptable lubricant around the moving parts to minimize friction and ensure wear and tear is minimized. This is a critical activity for devices that have moving parts as the sliding action will wear down the tool components and therefore reduce the service life of the tool.
- Corrosion
This includes routine checks for indications of wear, corrosion, and structural weaknesses, which consist of conducting and examining blood tests of respiration or throat health. Damage to the device is found at an early stage. These repairs are implemented without waiting till the component fails structurally.
- Storing the Tools Properly
Most handheld and power tools must be stored in a dry environment, free from exposure to moisture, to prevent corrosion-related problems. They should be stored by applying a protective coating to avoid increased risk of exposure to possible corrosion if proper storage is not possible.
- Respect of Operating Conditions
Ensure that Temperature, pressure and load limits are adhered to to prevent impairing a tool in any manner. Failure to do so may lessen the lifespan of products made of Grad CPM 4V due to overstressing or misuse.
References
- Tosahwi Blog – Understanding Knife Steel: Properties, Applications, and the Search for the Ideal Blade
This blog discusses the properties and benefits of knife steel, including toughness, wear resistance, and microstructure.
Visit Tosahwi Blog - Yakushi Knives Blog – The Science Behind Blade Materials
This source explains key properties of knife steel, such as hardness, toughness, edge retention, and corrosion resistance.
Visit Yakushi Knives Blog - Knife Steel Nerds – Knife Steels Rated by a Metallurgist
A metallurgist evaluates knife steels based on toughness, edge retention, and corrosion resistance, providing scientific insights.
Visit Knife Steel Nerds
Frequently Asked Questions (FAQ)
What is 1095 carbon steel and its composition?
1095 carbon steel is a high-carbon steel known for its hardness and edge retention. It contains approximately 0.95% carbon, which contributes to its strength and toughness. This steel is often used in knife making due to its ability to hold a sharp edge and is favored in the knife industry for its performance characteristics.
How does CPM 20CV stainless steel compare to 1095 carbon steel?
CPM 20CV stainless steel is a high-performance steel renowned for its exceptional wear resistance and edge-holding capabilities. Unlike 1095 carbon steel, which is prone to rust and requires proper maintenance, CPM 20CV incorporates chromium for better corrosion resistance. This makes it ideal for applications where moisture exposure is a concern.
What are the key characteristics of blade steel?
Blade steel varies widely in composition and performance. Key characteristics to consider include hardness, toughness, edge retention, and corrosion resistance. Steels like 1095 offer excellent edge retention but require careful maintenance, while stainless steels like CPM 20CV provide better corrosion resistance, balancing toughness and edge-holding properties.
What can you tell me about the information and composition of carbon steel?
Carbon steel is primarily composed of iron and carbon, with varying amounts of other alloying elements. The carbon content significantly influences its properties; higher carbon content typically results in greater hardness and edge retention. Understanding the chemical composition of carbon steel is crucial for the knife industry to determine the right steel for specific applications.
What is the heat treat process for 1095 carbon steel?
The heat treat process for 1095 carbon steel involves heating it to a temperature around 1,500°F, followed by quenching in oil or water to harden the steel. This process enhances the toughness and edge retention of the steel, making it suitable for high-performance applications in knives and tools.
Can you explain the toughness of the steel in blade applications?
Toughness in blade applications refers to the steel’s ability to absorb energy and resist fracture. For knife steels like 1095 and CPM 20CV, toughness is crucial for maintaining a durable cutting edge in various conditions. A balance between toughness and hardness is essential to ensure the blade can withstand impacts without chipping.
What is the significance of vanadium carbides in CPM 20CV stainless steel?
Vanadium carbides in CPM 20CV stainless steel enhance its wear resistance and toughness. These carbides form during the heat treatment process, providing a fine-grain structure that contributes to excellent edge stability and improved performance in cutting tasks. This makes CPM 20CV a preferred choice for high-end knives.
How does the steel design impact knife performance?
The steel design directly impacts knife performance by determining hardness, toughness, and edge retention. Different steel types, such as 1095 carbon steel and CPM 3V, offer unique characteristics that influence how a knife performs in cutting, slicing, and general use. Selecting the right steel for the intended application is vital for achieving optimal performance.
