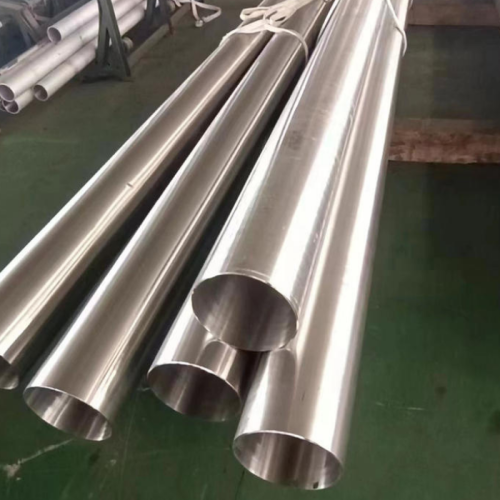

Hastelloy B2 Pipe – Premium Corrosion-Resistant Alloy from China Manufacturer
Hastelloy B2 Pipe, a nickel-molybdenum superalloy, excels in extreme chemical environments. Known for its outstanding corrosion resistance, this hastelloy material is ideal for industries requiring durable, high-performance piping solutions. Key applications include chemical processing and pharmaceutical manufacturing.
Price: Contact Us for a Custom Quote
For competitive hastelloy pipe price, reach out to our sales team for a personalized quote. Pricing terms for Hastelloy B2 Pipe vary based on specifications and order volume.
Specifications
- Outer Diameter: 6 mm to 219 mm
- Wall Thickness: 0.5 mm to 20 mm
- Length: Up to 12 meters (customizable)
- Surface Treatment: Annealed, pickled, or polished
- Standards: ASTM B622, ASME SB622
Key Features (Advantages)
- Exceptional resistance to hydrochloric acid at all concentrations
- Superior performance in reducing environments
- High durability in high-temperature alloys applications
- Resistant to pitting and stress corrosion cracking
- Long service life, reducing maintenance costs
Applications
Hastelloy B2 Pipe is widely used in:
- Chemical Processing: Handling acids and solvents
- Pharmaceuticals: Piping for corrosive fluids
- Oil and Gas: Equipment in sour gas environments
- Power Generation: High-temperature, corrosive systems
Chemical Composition of Hastelloy B2 Pipe
| Element | Percentage (%) |
|---|---|
| Nickel | Balance |
| Molybdenum | 26.0–30.0 |
| Iron | 2.0 max |
| Chromium | 1.0 max |
| Carbon | 0.02 max |
| Silicon | 0.10 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 760 MPa |
| Yield Strength | ≥ 350 MPa |
| Elongation | ≥ 40% |
| Hardness | ≤ 95 HRB |
Chemical Properties
Hastelloy B2 Pipe offers unmatched resistance to hydrochloric acid, sulfuric acid, and other reducing media. It performs well in corrosion-resistant alloys applications but is not recommended for oxidizing environments, as it may corrode under such conditions.
Things to Note (Limitations)
- Not suitable for oxidizing media (e.g., nitric acid)
- Limited performance above 1000°C due to potential embrittlement
- Requires careful welding to avoid intergranular corrosion
Corrosion Data for Hastelloy B2 Pipe
| Environment | Corrosion Rate (mm/year) |
|---|---|
| 10% Hydrochloric Acid (Boiling) | 0.05 |
| 20% Sulfuric Acid (80°C) | 0.1 |
| Atmospheric Exposure | Negligible |
Welding and Manufacturing Tips
Hastelloy B2 Pipe supports welding via TIG, MIG, and shielded metal arc welding. Preheating is not required, but post-weld heat treatment may be necessary to prevent cracking. Forming techniques include bending and machining, with proper tooling to handle its high strength.
What Customers Say About Our Hastelloy Material
Frequently Asked Questions
Q: What is the difference between Hastelloy B2 and Hastelloy C?
A: Hastelloy B2 is optimized for reducing environments, while Hastelloy C offers a broader resistance range to oxidizing and reducing agents.
Â
Q: Are Hastelloy B2 pipes suitable for high-temperature applications?
A: Yes, but they are best used under 600°C for structural stability.
Â
Q: Can Hastelloy B2 pipes be customized?
A: Yes, they can be tailored to different lengths, thicknesses, and diameters.
Â
Q: What industries often use Hastelloy B2 Pipes?
A: Common industries include chemical processing, pharmaceuticals, and marine systems.
Â
Q: How does Hastelloy B2 perform under stress corrosion?
A: It offers excellent resistance to stress corrosion cracking in aggressive environments.
