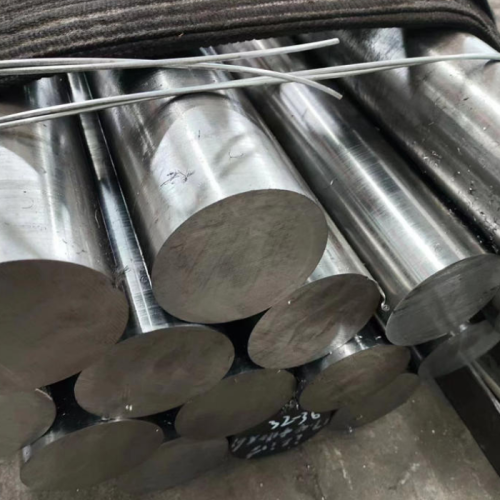

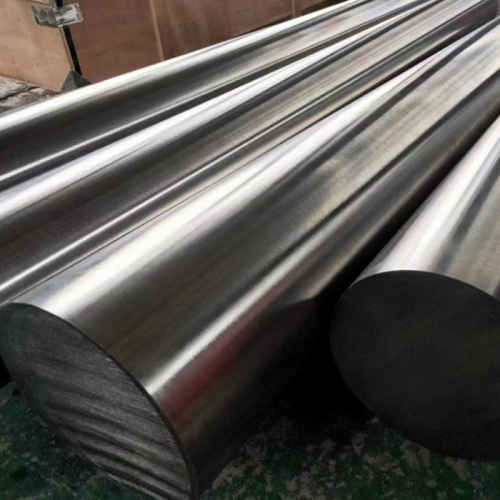

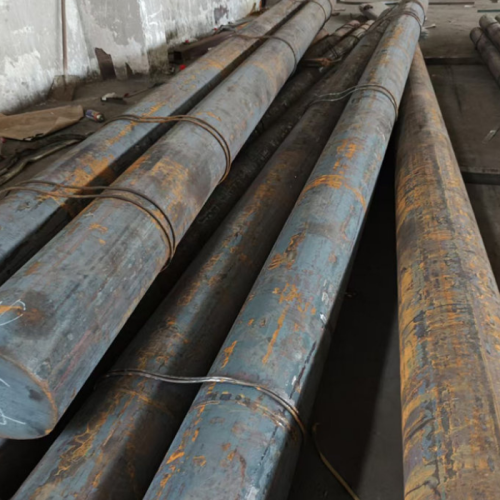

Hastelloy C2000 Tube – Advanced Corrosion Resistant Alloy from China Manufacturer

Hastelloy C2000 Tube, a nickel-chromium-molybdenum-copper alloy, offers unmatched resistance to a wide range of corrosive environments. As a leading hastelloy tubing supplier in China, our enterprise provides this superalloy for demanding industrial applications.

Price: Contact Us for a Custom Quote

For precise pricing and custom dimensions, please contact us with your project details. We provide competitive offers for Hastelloy C2000 Tubes under flexible terms tailored to your requirements.

Specifications

Thickness: Customized as per client requirements
Outer Diameter (OD): Wide range available, depending on the project specifications
Surface Treatment: Pickling, annealing, and polishing available

Key Features (Advantages)

Exceptional resistance to oxidizing and reducing acids
Superior performance in high-temperature alloys applications
Enhanced resistance to pitting and crevice corrosion
Good weldability among hastelloy grades
Custom solutions from trusted hastelloy tubing suppliers

Applications

Hastelloy C2000 Tube is ideal for industries requiring corrosion-resistant alloys. Key uses include:

Chemical processing: Reactors, columns
Pharmaceutical: High-purity systems
Petrochemical: Acidic gas environments
Power generation: Scrubbers and heat exchangers

Chemical Composition of Hastelloy C2000 Tube

Element	Percentage (%)
Nickel (Ni)	59.0 min
Chromium (Cr)	23
Molybdenum (Mo)	16
Copper (Cu)	1.6
Iron (Fe)	3.0 max
Others	Trace

Mechanical Properties

Property	Value
Tensile Strength	≥ 760 MPa
Yield Strength	≥ 363 MPa
Elongation	≥ 45%
Hardness	≤ 90 HRB

Chemical Properties

Hastelloy material like C2000 resists:

Acids: Sulfuric, hydrochloric, hydrofluoric
Alkalis: Caustic soda
Environmental Restrictions: Avoid extended exposure above 1000°C to maintain stability.

Things to Note (Limitations)

Hastelloy C2000 Tube has some restrictions:

Not suitable for temperatures exceeding 1000°C due to potential phase changes
Limited performance in highly oxidizing nitric acid environments

Corrosion Data for Hastelloy C2000 Tube

Environment	Corrosion Rate (mm/year)
Atmospheric	<0.01
10% Sulfuric Acid	<0.03
10% Hydrochloric Acid	<0.05

Welding and Manufacturing Tips

Recommended welding for Hastelloy metal includes:

TIG (GTAW), MIG (GMAW)
Use C2000 filler metals for optimal results

Fabrication: Supports cold forming, hot forming, and machining with carbide tools.

What Customers Say About Our Hastelloy Material

Frequently Asked Questions

Q: What is the difference between Hastelloy C2000 and other Hastelloy grades?

A: Hastelloy C2000 offers enhanced resistance to both oxidizing and reducing agents, making it more versatile than other traditional grades.

Q: What industries are best suited for Hastelloy C2000 Tubes?

A: These tubes are ideal for chemical processing, pharmaceutical manufacturing, power generation, and desalination plants.

Q: Can these tubes withstand high temperatures?

A: Yes, Hastelloy C2000 Tubes perform efficiently under high temperatures, but extreme prolonged heat exposure may require caution.

Q: What sets Hastelloy C2000 Tube apart from other Hastelloy grades?

A: Enhanced copper content improves resistance to sulfuric and hydrofluoric acids compared to Hastelloy C.

Q: Enhanced copper content improves resistance to sulfuric and hydrofluoric acids compared to Hastelloy C.

A: TIG or MIG with matching fillers for best results.
