Leading Hastelloy Plate Manufacturer from China

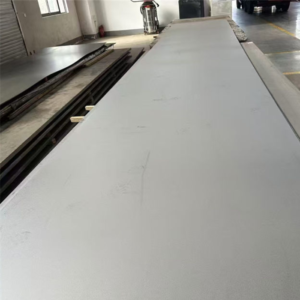

Hastelloy Plate
Hastelloy Plates are premium nickel-based superalloys designed to thrive in the harshest environments, offering outstanding resistance to corrosion, high temperatures, and mechanical stress. As a leading manufacturer in China, our factory produces Hastelloy Plates and Sheets that blend nickel, molybdenum, and chromium to deliver durability and versatility. These plates are a trusted solution for industries facing aggressive conditions where standard metals like stainless steel or aluminum fall short. Whether you’re tackling chemical processing or aerospace challenges, our Hastelloy Plates provide the reliability you need.
Hastelloy Plate For Sale
-
-
-
Hastelloy Plate
Hastelloy C-4 Plate – Premium Corrosion Resistant Alloy from China Manufacturer
$33.00 -
-
-
-
Specifications: Standards and Classifications
Hastelloy Plates meet stringent industry standards and come in a range of grades suited for diverse applications:
- Standards: ASTM B575, ASME SB575, AMS 5754, ISO 9723
- Grades: Hastelloy C276, C22, B2, B3, X, C2000, G-30, N, Hybrid-BC1
- Classifications: Nickel-molybdenum-chromium alloys, corrosion-resistant superalloys, high-temperature alloys
These specs ensure every Hastelloy Plate delivers consistent performance, validated through rigorous testing and certifications.
Size Range: Dimensions and Customization
Hastelloy Plates are available in various dimensions, with options for customization:
- Thickness: 2.5 mm to 100 mm (0.098 to 3.94 inches)
- Width: 500 mm to 2000 mm (19.7 to 78.7 inches)
- Length: 1000 mm to 6000 mm (39.4 to 236.2 inches), extendable per request
- Custom Options: Cut-to-size plates tailored to your specifications
This flexibility makes Hastelloy Sheets and Plates ideal for both small-scale components and large structural builds.
Types: Forms, Processes, and Finishes
Hastelloy Plates come in multiple forms, crafted with advanced processes and finishes:
- Forms: Flat Plate, Perforated Plate, Chequered Plate, Shim Sheet
- Processes: Hot rolling, cold rolling, forging, annealing
- Surface Treatments: No.1 (hot-rolled), 2B (smooth), BA (bright annealed), satin, or custom finishes
For example, a Hastelloy C276 Plate might feature a 2B finish for enhanced smoothness, while a Hastelloy X Plate could be hot-rolled for high-temperature strength.
Applications: Common Grades and Uses
| Grade | Key Features | Industry | Specific Uses |
|---|---|---|---|
| C276 | Broad corrosion resistance | Chemical, Oil & Gas | Reactors, heat exchangers, valve bodies |
| C22 | Weldability, pitting resistance | Pharmaceutical, Marine | Piping systems, desalination equipment |
| B2 | Resistance to reducing acids | Chemical Processing | Acid tanks, pump liners |
| X | High-temperature strength | Aerospace, Power Gen | Turbine blades, exhaust systems |
| C2000 | Enhanced chemical versatility | Petrochemical | Pressure vessels, distillation columns |
Frequently Asked Questions
Q:What is Hastelloy Plate used for?
A:Hastelloy Plate, such as Hastelloy C-276, is used in chemical processing for reactors, pollution control systems, and pharmaceutical equipment due to its exceptional resistance to corrosive acids and high temperatures.
Q:Is Hastelloy better than stainless steel?
A:Hastelloy Plate outperforms stainless steel in resisting pitting and crevice corrosion, especially in acidic environments like sulfuric or hydrochloric acid. Stainless steel is more cost-effective for less aggressive conditions.
Q:When can Hastelloy Plate not be used?
A:Hastelloy Plate should not be used in highly oxidizing environments (e.g., concentrated nitric acid) without specific grades like Hastelloy G-30, or where cost outweighs corrosion needs, favoring cheaper alternatives.
Q:Is Hastelloy easy to machine?
A:Hastelloy Plate is challenging to machine due to its high strength and work-hardening tendency. It requires rigid setups, low speeds, and carbide tools with ample coolant for precision cutting.
Q:What is the temperature range for Hastelloy?
A:Hastelloy Plate performs well from cryogenic temperatures up to 1000°C (1832°F), depending on the grade, making it suitable for extreme heat in industrial furnaces or cryogenic storage.
Q:How thick is Hastelloy Plate?
A:Hastelloy Plate thickness ranges from 0.5mm to 50mm, with standard industrial sizes between 1mm and 10mm. Custom thicknesses are available based on specific application requirements.
