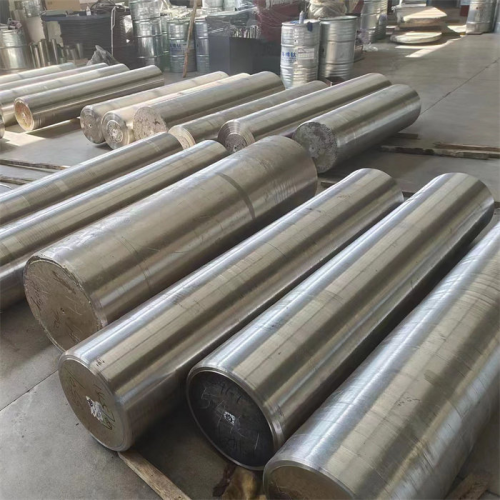

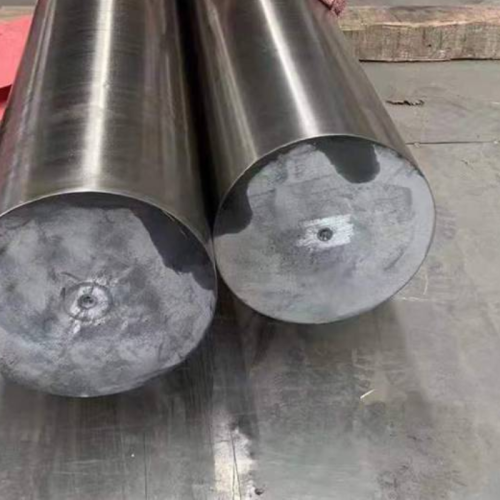

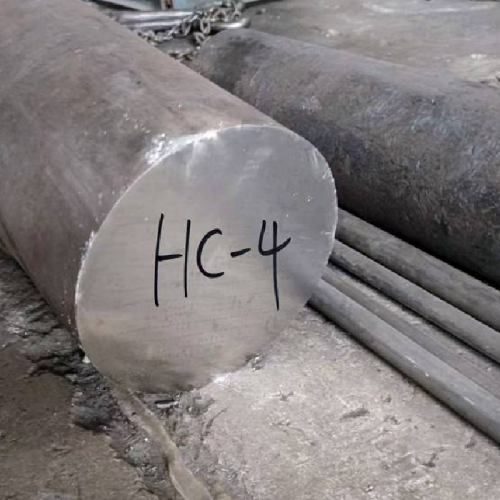

Hastelloy C-4 Rod – Premium Corrosion Resistant Alloy from China Manufacturer
Hastelloy C-4 Rod, a high-performance superalloy, offers exceptional resistance to corrosion and high temperatures. Engineered for demanding applications, this hastelloy material excels in chemical processing, aerospace, and marine environments. As a trusted China manufacturer, we deliver top-quality hastelloy grades to meet your industrial needs.
Price: Contact Us for a Custom Quote
For pricing of Hastelloy C-4 Rods, please reach out to obtain a personalized quote. Pricing is dependent on order quantity, size, and specific requirements. Contact our team for more details about Hastelloy C-4 Rod.
Specifications
- Material: Hastelloy C-4 (Nickel-molybdenum alloy)
- Diameter: 6mm to 250mm
- Length: Customizable to order requirements
- Surface Treatment: Polished, bright finish, matt finish
- Standards Compliance: ASTM B574, ASME SB574
Key Features (Advantages)
- Outstanding resistance to pitting, stress-corrosion cracking, and crevice corrosion.
- Excellent mechanical properties at both elevated and cryogenic temperatures.
- High resistance to oxidizing agents such as wet chlorine gas, hypochlorite, and nitric acid.
- Easy to fabricate and weld using conventional techniques.
Applications
Hastelloy C-4 Rods are ideal for:
- Chemical processing equipment, including reactors and pressure vessels.
- Components in pollution control systems, such as scrubbers and flue-gas scrubbers.
- Heat exchangers and condensers in power generation plants.
- Aerospace and marine applications requiring superior corrosion resistance.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 65.0 min |
| Chromium (Cr) | 14.0 - 18.0 |
| Molybdenum (Mo) | 14.0 - 17.0 |
| Iron (Fe) | 3.0 max |
| Titanium (Ti) | 0.7 max |
| Carbon (C) | 0.015 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 690 MPa |
| Yield Strength | ≥ 275 MPa |
| Elongation | ≥ 40% |
Chemical Properties
Hastelloy C-4 Rod resists sulfuric, hydrochloric, and nitric acids, plus alkalis. It performs in oxidizing and reducing environments but is not suited for prolonged use above 1000°C.
Things to Note (Limitations)
- Susceptible to damage under prolonged exposure to temperatures exceeding 1200°F (649°C).
- Reduced corrosion resistance in environments containing fluoride ions at high temperatures.
- Not suited for highly abrasive applications without proper surface treatment.
Corrosion Data
- Atmospheric (Rural): <0.01
- Sulfuric Acid (10%): 0.02 – 0.05
- Hydrochloric Acid (5%): 0.03 – 0.08
Welding and Manufacturing Tips
Hastelloy C-4 Rods are easily weldable using TIG, MIG, and submerged arc welding processes. Preheating is not required, and the material is compatible with both manual and automated fabrication techniques. Care should be taken to avoid rapid cooling, as it may lead to stress in the welded region.
Customer Reviews
Frequently Asked Questions
Q: What is the difference between Hastelloy C-4 Rod and Hastelloy C-276 Rod?
A: Hastelloy C-4 offers superior resistance to intergranular corrosion and has a higher chromium content compared to C-276, making it ideal for extreme environments.
Q: Can Hastelloy C-4 Rod be used in marine applications?
A: Yes, its exceptional resistance to pitting and crevice corrosion makes it suitable for marine environments.
Q: What industries commonly use Hastelloy C-4 Rods?
A: They are widely used in the chemical processing, power generation, pollution control, aerospace, and marine industries.
Q: How do I determine the correct size for my application?
A: Our team can assist in determining the exact specifications based on your application needs. Provide details about the environment and operational conditions.
Q: Does Hastelloy C-4 Rod require special storage?
A: To maintain its performance, store the rods in a dry environment and avoid exposure to corrosive agents during storage.
