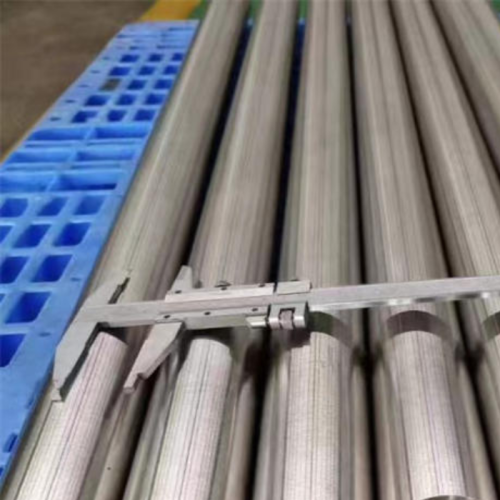

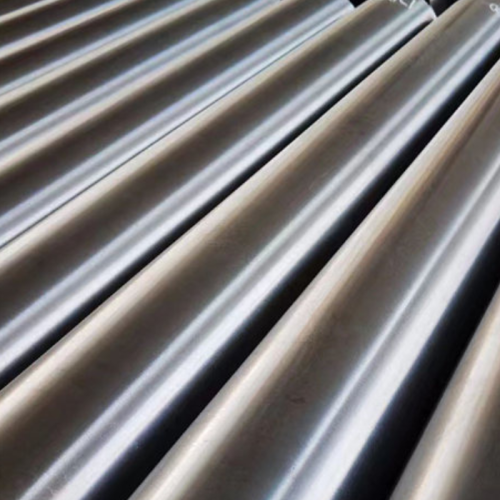

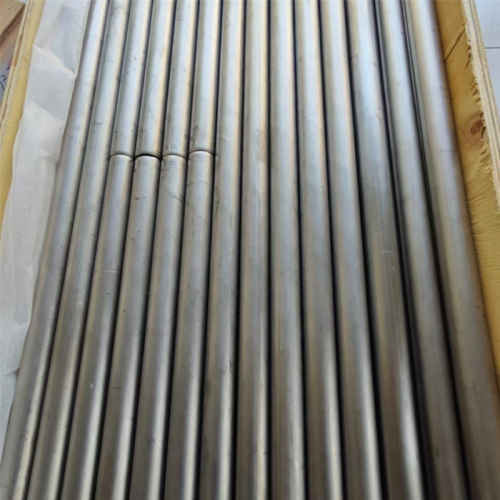

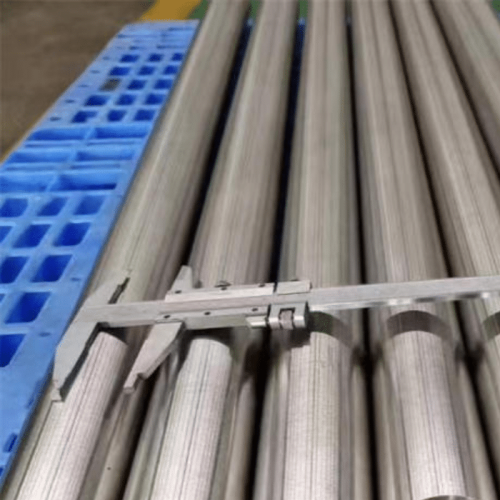

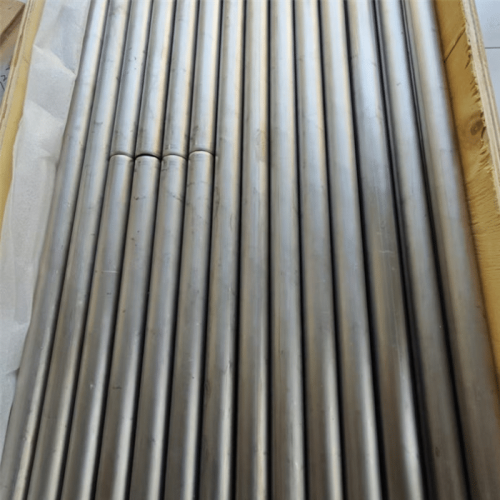

Inconel 625 Pipe – High-Performance Alloy from a China Manufacturer
The Inconel 625 Pipe is a high-strength nickel-chromium-molybdenum alloy renowned for its exceptional corrosion resistance and performance in extreme temperatures. Produced by expert factories in China, this alloy is ideal for harsh environments. Whether you need Inconel 625 Seamless Pipe, Inconel 625 Nickel Alloy Tubes, or Inconel 625 N08810 Material, it delivers reliability across demanding applications.
Price: Contact Us for a Custom Quote
Curious about the Inconel 625 Pipe price? Pricing varies by diameter, wall thickness, and order volume. Contact our team for a tailored quote. As a leading manufacturer in China, we offer competitive rates on Nickel-Based Alloy Tubes to meet your industrial needs.
Specifications
Our Nickel Based Alloy Pipe comes in various configurations:
- Outer Diameter: 6mm to 600mm
- Wall Thickness: 0.5mm to 50mm
- Length: Up to 12 meters or cut-to-length
- Surface Finish: Polished, pickled, or annealed
- Standards: ASTM B444, ASME SB444, UNS N06625
Need specific Nickel Based Alloy Pipe specs? Our China factory offers customized solutions!
Features (Advantages)
- Outstanding Corrosion Resistance: Resists acids, saltwater, and pitting.
- High Strength: Robust for Inconel 625 Seamless Pipe in tough conditions.
- Heat Resistance: Performs up to 1000°C.
- Versatility: Ideal as Inconel 625 Nickel Alloy Tubes for multiple uses.
- Durability: Long-lasting under pressure and corrosion.
- Quality Assurance: From trusted Inconel 625 Nickel Alloy Pipe Suppliers in China.
Applications
The Inconel 625 Pipe serves critical industries:
- Aerospace: Exhaust systems and fuel lines.
- Marine: Piping for seawater systems.
- Chemical Processing: Pipelines with Inconel 625 Seamless Pipe for acid transport.
- Oil & Gas: Downhole tubing in corrosive wells.
- Power Generation: High-temperature Material for boilers.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 58.0 min |
| Chromium (Cr) | 20.0–23.0 |
| Molybdenum (Mo) | 8.0–10.0 |
| Iron (Fe) | ≤ 5.0 |
| Niobium (Nb) | 3.15–4.15 |
| Cobalt (Co) | ≤ 1.0 |
| Manganese (Mn) | ≤ 0.5 |
| Silicon (Si) | ≤ 0.5 |
| Carbon (C) | ≤ 0.10 |
| Phosphorus (P) | ≤ 0.015 |
| Sulfur (S) | ≤ 0.015 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 760–1000 MPa |
| Yield Strength (0.2%) | ≥ 345 MPa |
| Elongation | ≥ 30% |
| Hardness (Brinell) | 150–220 HB |
| Density | 8.44 g/cm³ |
Chemical Properties
- Acids: Excellent against sulfuric, hydrochloric, and phosphoric acids in various conditions.
- Alkalis: Strong resistance to bases like sodium hydroxide.
- Limitations: Performs well in both oxidizing and reducing environments with minimal constraints.
Things to Note (Limitations)
- Cost: Higher than stainless steel due to alloy content.
- High Temperatures: Strength may decrease above 1000°C over time.
- Fabrication: Requires specialized tools for Inconel 625 Seamless Pipe.
Our China distributor can suggest alternatives if needed.
Corrosion Data
- Atmospheric: Excellent resistance in all conditions.
- Saltwater: Superior against pitting and crevice corrosion.
- Acidic Environments: Strong resistance to mixed acids.
This suits Inconel 625 Pipes for marine and chemical applications.
Welding and Manufacturing Tips
Welding Inconel 625 Pipes is efficient:
- TIG Welding: Preferred for precision on Inconel 625 Nickel Alloy Tubes.
- MIG Welding: Suitable for thicker Inconel 625 Seamless Pipe.
Tips:
- Use Inconel 625 or ERNiCrMo-3 filler metals for optimal weld strength.
- Control heat input to avoid cracking during fabrication.
- Machining requires sharp tools and coolant for precision.
Our China factory offers pre-fabricated Nickel Based Alloy Pipe options.
Customer Reviews
Frequently Asked Questions
Q: Can Inconel 625 Pipe be used in high-pressure chemical processing systems?
A: Yes, Inconel 625 Pipe is ideal for high-pressure chemical systems due to its strength and resistance to acids. It’s a top choice for Inconel 625 Seamless Pipe – contact our China manufacturer for more details!
Q: How does Inconel 625 Nickel Alloy Tubes compare to stainless steel piping?
A: Inconel 625 Nickel Alloy Tubes outperform stainless steel in corrosion resistance and high-temperature strength, making Inconel 625 Pipe a premium option. Ask our China distributor for guidance!
Q: Is Inconel 625 Seamless Pipe suitable for cryogenic applications?
A: Absolutely, Inconel 625 Seamless Pipe maintains toughness at low temperatures, perfect for cryogenic systems alongside its high-temp capabilities. Our China factory ensures versatile performance!
Q: What’s the advantage of choosing Inconel 625 Tube from China suppliers?
A: We offers competitive pricing and high quality, backed by our China enterprise’s expertise – get a quote to see the difference!
Q: Can Inconel 625 Nickel Alloy Tubes handle sour gas environments in oil and gas?
A: Yes, Inconel 625 Nickel Alloy Tubes resist sour gas corrosion, making it a reliable choice for oil and gas applications. Our China manufacturer delivers durable solutions!
Q: How long does it take to fabricate custom Inconel Pipe from China?
A: Fabrication time for custom Inconel Pipe depends on specs, but our China factory prioritizes efficiency – reach out for a precise timeline tailored to your order!
