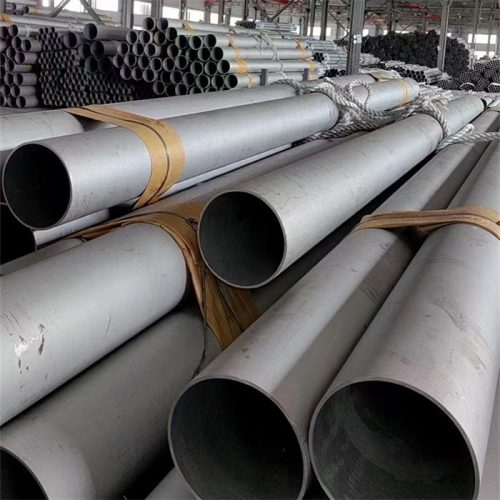

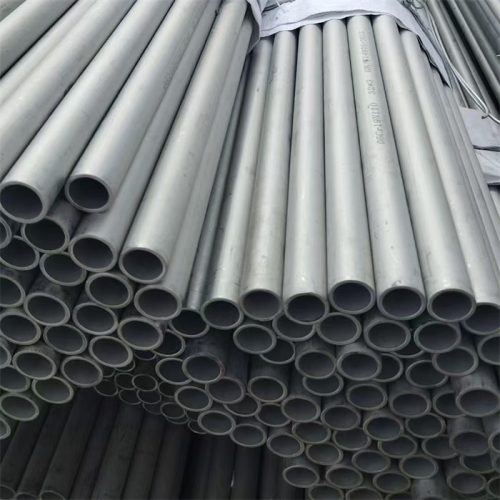

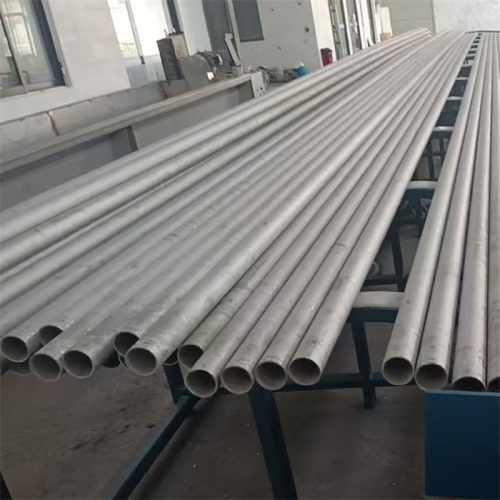

Nickel 200 Pipe – High-Performance Alloy from a China Manufacturer
The Nickel 200 Pipe is a commercially pure nickel alloy pipe renowned for its exceptional corrosion resistance and versatility in demanding environments. Manufactured by our expert China factory, this Nickel Alloy Pipe boasts high ductility, excellent thermal conductivity, and resistance to a variety of corrosive media, making it a go-to choice for industries worldwide. Whether you’re sourcing from nickel alloy pipe suppliers or need a Seamless Pipe, Nickel 200 delivers reliable performance where purity and durability are non-negotiable.
Price: Contact Us for a Custom Quote
To secure a competitive Nickel 200 Pipe price, reach out via our website’s contact form with your project details. Pricing depends on specifications like diameter, wall thickness, length, and whether you need seamless or welded options. Our team will deliver a customized quote promptly to align with your budget and timeline.
Specifications of Nickel 200 Pipe
Our Nickel Pipe is available in a range of configurations to meet diverse industrial needs:
- Diameter: 1/8” to 12” (6 mm to 323.9 mm)
- Wall Thickness: SCH 5S to SCH XXS (0.5 mm to 60 mm)
- Length: Up to 12 meters, customizable
- Type: Seamless Pipe, welded
- Surface Finish: Annealed, pickled, polished
- Standards: ASTM B161, ASTM B725, ASME SB161
- UNS Designation: N02200
Key Features (Advantages)
- Superior corrosion resistance in reducing and neutral environments
- High thermal and electrical conductivity, perfect for heat exchangers
- Excellent ductility for easy forming and machining
- Maintains integrity across a wide temperature range
- Commercially pure nickel (99.6%+), ensuring minimal impurities
- Backed by a top-tier China manufacturer for quality assurance
Applications
The Nickel 200 Tube shines in these industries:
- Chemical Processing: Piping for caustic soda and acid handling
- Food Industry: Equipment like evaporators with ni alloy purity
- Electronics: Components needing high conductivity
- Marine Engineering: Nickel Based Alloy pipes for seawater systems
- Aerospace: Lightweight, corrosion-resistant tubing
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 99.0 min |
| Iron (Fe) | 0.40 max |
| Manganese (Mn) | 0.35 max |
| Silicon (Si) | 0.35 max |
| Copper (Cu) | 0.25 max |
| Carbon (C) | 0.15 max |
| Sulfur (S) | 0.01 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 380 - 550 MPa |
| Yield Strength | 100 - 200 MPa |
| Elongation | ≥40% |
| Hardness (Rockwell B) | ≤70 HRB |
Chemical Properties
The Nickel 200 Material resists various corrosive agents:
- Acids: Excellent resistance to non-oxidizing acids like hydrochloric
- Alkalis: Superior performance in caustic solutions like sodium hydroxide
- Limitations: Less effective in oxidizing environments or aerated acids
Its nickel purity ensures top-tier performance in reducing conditions.
Things to Note (Limitations)
When using a Nickel 200 Pipe, keep these factors in mind:
- Avoid prolonged exposure above 600°C (1112°F) to prevent graphitization
- Not suited for oxidizing acids or high-chloride environments
- Cold working increases strength but may reduce ductility if overdone
Corrosion Data
| Environment | Corrosion Resistance |
|---|---|
| Dry Atmosphere | Excellent, minimal rust |
| Caustic Soda (NaOH) | Outstanding resistance up to molten state |
| Hydrochloric Acid (HCl) | Good in non-aerated conditions |
| Saltwater | Moderate, pitting risk in aerated settings |
Best Welding and Manufacturing Practices
Fabricating a Nickel 200 Pipe is straightforward with the right approach:
- Welding Methods: TIG or MIG with Nickel 61 filler metal
- Tips: Preheat to 200°C (392°F) for thick sections; avoid excessive heat to prevent cracking
- Manufacturing: Hot working at 1200-2250°F (649-1232°C); annealing at 1300-1600°F (704-871°C)
Our China factory ensures precision for every Seamless Pipe.
What Customers Say
Frequently Asked Questions
Q: What’s the edge of Nickel 200 Material over stainless steel?
A: It’s all about purity—Nickel 200 Material offers better resistance to caustic alkalis and reducing acids than most stainless options, plus higher conductivity for specialized uses.
Q: Can it handle tough chemical lines?
A: You bet! This Nickel Alloy Pipe thrives in non-oxidizing setups like caustic soda or hydrochloric acid lines—just keep it away from oxidizing stuff.
Q: Why should I care about seamless over welded?
A: A Seamless Pipe like Nickel 200 means no weak spots—better pressure tolerance and fewer leak risks, especially in high-stakes systems.
Q: Where’s this pipe showing up most?
A: Chemical plants, food processing, and aerospace are big fans. Anywhere you need a Nickel Based Alloy that’s pure and tough, it’s a contender.
Q: How fast can I get a quote from you guys?
A: Throw your specs our way on the site—diameter, length, whatever—and our China crew will shoot you a Nickel 200 Pipe price in under 24 hours.
Q: Will it hold up in steamy conditions?
A: It’s solid in moderate humidity or steam, but crank the heat past 600°C for too long, and you might see some wear—keep it in check for best results.
