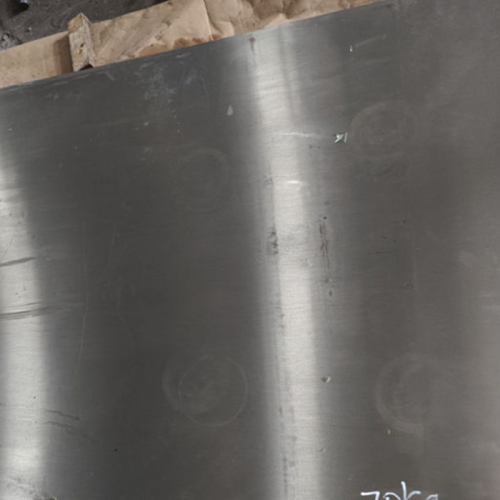

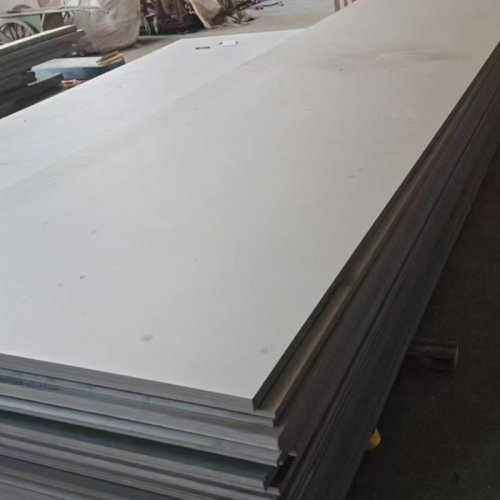

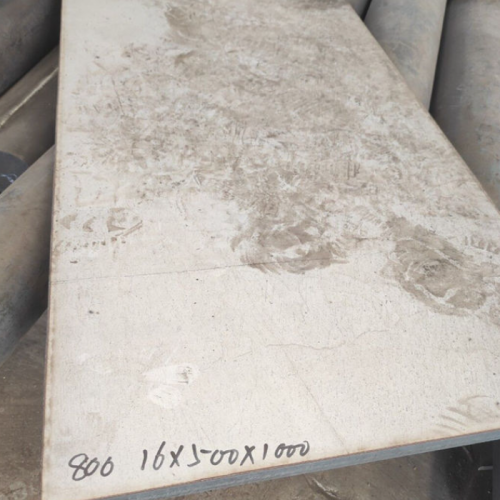

Inconel 800 Plate – High-Strength Quality by China Manufacturer
Meet Inconel 800 Plate, a standout offering from our expert China manufacturer. This nickel-iron-chromium alloy delivers exceptional resistance to oxidation and carburization at high temperatures, paired with solid mechanical strength. Whether you need Inconel 800 nickel alloy plates for petrochemical equipment or heat exchangers, our factory ensures top-tier quality for demanding applications.
Price: Contact Us for a Custom Quote
Are you looking for Inconel 800 Plate pricing? Contact our sales team for a custom quote. Pricing depends on thickness, size, and order volume—reach out today for the best rates!
Specifications
- Thickness: 0.5 mm – 100 mm
- Width: Up to 2500 mm
- Length: Up to 6000 mm (custom lengths available)
- Surface Finish: Hot-rolled, cold-rolled, or polished
- Standards: ASTM B409, UNS N08800, W.Nr. 1.4876
Our Inconel nickel alloy sheets and plates are tailored to your needs!
Features (Advantages)
- High-Temperature Resistance: Thrives up to 1100°C (2012°F).
- Oxidation Resistance: Forms a protective oxide layer.
- Carburization Resistance: Stands up to carbon-rich environments.
- Good Strength: Reliable at both ambient and elevated temps.
- Fabrication Ease: Suits Inconel 800 nickel alloy plate rolling and forming.
Applications
Inconel 800 Alloy Plate serves a range of industries:
- Petrochemical: Process piping and reformers.
- Power Generation: Heat exchangers and steam generators.
- Chemical Processing: Equipment for ethylene production.
- Thermal Processing: Furnace muffles and radiant tubes.
- Nuclear: Steam generator tubing with Incoloy 800 plate.
Chemical Composition
| Element | Symbol | Weight % |
|---|---|---|
| Nickel | Ni | 30.0 - 35.0 |
| Chromium | Cr | 19.0 - 23.0 |
| Iron | Fe | ≥ 39.5 |
| Carbon | C | ≤ 0.10 |
| Manganese | Mn | ≤ 1.50 |
| Silicon | Si | ≤ 1.00 |
| Aluminum | Al | 0.15 - 0.60 |
| Titanium | Ti | 0.15 - 0.60 |
| Copper | Cu | ≤ 0.75 |
| Sulfur | S | ≤ 0.015 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 520 - 690 MPa |
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 30% |
| Hardness (Brinell) | ≤ 217 HB |
| Density | 7.94 g/cm3 |
Chemical Properties
- Acids: Resists nitric and organic acids; less effective in sulfuric.
- Alkaline Solutions: Stable in mild bases up to 538°C (1000°F).
- Aqueous Corrosion: Strong against chloride stress cracking.
Avoid prolonged sulfuric acid exposure.
Things to Note (Limitations)
- Temperature Limits: Avoid 538-760°C (1000-1400°F) to prevent carbide precipitation.
- Sulfuric Acid: Limited resistance in high concentrations.
- Cold Work: Work-hardens quickly, needing annealing after heavy forming.
Corrosion Data
| Environment | Condition | Corrosion Resistance | Approx. Corrosion Rate (mm/year) |
|---|---|---|---|
| Fresh Water | Ambient (20-25°C) | Excellent | < 0.01 |
| Salt Water (3.5% NaCl) | Ambient (20-25°C) | Good | 0.05 - 0.1 |
| Humid Air | 50-90% RH, 25°C | Excellent | < 0.02 |
| Nitric Acid (10%) | Ambient (20-25°C) | Good | 0.02 - 0.05 |
| Sulfuric Acid (3%) | Ambient (20-25°C) | Poor | 0.5 - 1.0 |
| Hydrochloric Acid (5%) | Ambient (20-25°C) | Poor | 1.0 - 2.0 |
| Phosphoric Acid (10%) | Ambient (20-25°C) | Moderate | 0.1 - 0.3 |
| Sodium Hydroxide (10%) | 50°C | Good | 0.05 - 0.1 |
| High Temperature Air | 1000°C (1832°F), Dry | Excellent | < 0.02 |
| Carburizing Atmosphere | 900°C (1652°F), Carbon-rich | Good | 0.03 - 0.08 |
| Sulfur Compounds (H2S) | 500°C (932°F) | Moderate | 0.1 - 0.5 |
Contact us for detailed corrosion resistance data specific to your application.
Welding and Fabrication Tips
- Welding: Use GTAW (TIG) or GMAW (MIG) with Inconel 625 filler; no post-weld anneal needed.
- Forming: Hot-work at 1600-2200°F (871-1204°C); avoid 1200-1600°F range.
- Machining: Annealed state preferred; use sharp tools for Inconel 800 nickel alloy plate rolling.
Our factory ensures fabrication success.
Customer Reviews
Frequently Asked Questions
Q1: How does Inconel 800 compare to Inconel 600?
A: Inconel 800 has higher iron and added titanium/aluminum, boosting carburization and oxidation resistance at high temps (up to 1100°C) compared to 600, which excels in pure corrosion but lacks the same heat durability.
Q2: What’s the best use for Inconel 800 Nickel Alloy Plates?
A: Perfect for high-heat, oxidizing environments—think petrochemical reformers, heat exchangers, or Incoloy 800 plate in furnace muffles. It’s built for where thermal stability and moderate corrosion resistance matter.
Q3: Is Inconel 800 resistant to corrosion in acids?
A: It’s good against nitric and organic acids but struggles with sulfuric or hydrochloric in high concentrations. Inconel 800 shines more in oxidation and aqueous chloride resistance than reducing acids.
Q4: Can Inconel 800 Alloy Plate be welded easily?
A: Yes! Use TIG or MIG with Inconel 625 filler—it welds smoothly without post-weld annealing. Inconel 800 nickel alloy plate rolling and welding make it a fabricator’s friend for complex assemblies.
Q5: How does Inconel 800 Alloy Plate perform at high temperatures?
A: It’s a champ up to 1100°C (2012°F), resisting oxidation and carburization. Avoid the 538-760°C range long-term to prevent carbide precipitation—otherwise, Inconel 800 Alloy Plate is a heat warrior.
