The stainless steel grades chart is a comprehensive guide that categorizes different types of stainless steel based on their composition, properties, and applications. It is essential in selecting the right material for environments requiring optimal corrosion resistance. The chart typically includes information on chromium, nickel, molybdenum, and other alloying elements, which are crucial in determining a grade’s strength, durability, and resistance to corrosion. By understanding this chart, industries can make informed decisions to ensure long-lasting performance and overall cost-efficiency in their projects.
What are the Different Types of Stainless Steel?
Stainless steel is categorized into five main types based on its microstructure and composition, each suited for specific applications:
- Austenitic Stainless Steel
This type is the most common and versatile, known for its excellent corrosion resistance, non-magnetic nature, and high formability. It typically contains high levels of chromium and nickel, making it ideal for kitchen equipment, medical instruments, and food processing.
- Ferritic Stainless Steel
Ferritic grades are magnetic and offer good corrosion resistance and thermal conductivity. They are often used in automotive exhaust systems, appliances, and architectural applications.
- Martensitic Stainless Steel
Known for its high strength and hardness, this type is magnetic and has moderate corrosion resistance. It’s commonly used for cutlery, surgical instruments, and industrial tools.
- Duplex Stainless Steel
A blend of austenitic and ferritic properties, duplex stainless steel provides exceptional strength and resistance to stress corrosion cracking, making it ideal for chemical processing, marine environments, and oil and gas industries.
- Precipitation-Hardening Stainless Steel
These grades offer outstanding strength and wear resistance due to heat treatment. They are often used in aerospace, defense, and high-performance engineering applications.
Each type has unique properties optimized for specific environments and performance requirements, making stainless steel a versatile material in countless industries.

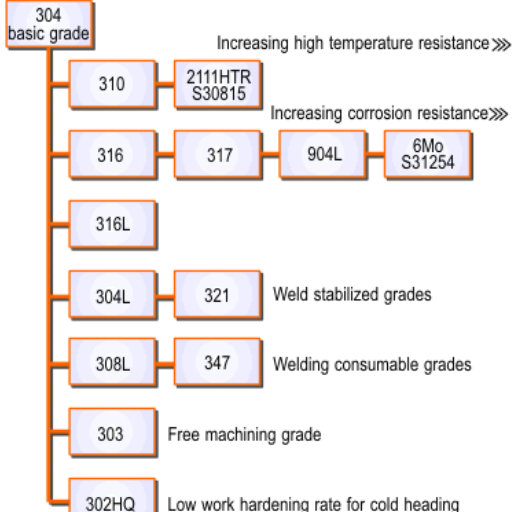

Exploring Austenitic Stainless Steel
Austenitic stainless steel is the most widely used category of stainless steel, known for its exceptional corrosion resistance, formability, and ductility. Comprising chromium (16–26%) and nickel (6–22%), with some variations including molybdenum or nitrogen for enhanced properties, it is non-magnetic in its annealed state and maintains high strength across a broad temperature range. Popular grades, such as 304 and 316, are particularly valued for their excellent performance in harsh environments, including marine applications, chemical processing, and food production.
Notable for its resistance to oxidation and ease of fabrication through welding and machining, austenitic stainless steel is suitable for applications requiring durability and hygiene. Its versatility spans industries like construction, automotive, healthcare (e.g., surgical instruments), and kitchen equipment. Though typically higher in cost due to its nickel content, its long-term reliability and minimal maintenance needs often outweigh initial investment concerns.
Characteristics of Ferritic Stainless Steel
Ferritic stainless steel is primarily composed of chromium, typically ranging between 10.5% and 30%, with little to no nickel content, making it more cost-effective compared to austenitic grades. Known for its excellent resistance to corrosion, particularly in non-aggressive environments, ferritic stainless steel also demonstrates good resistance to stress corrosion cracking. Its metallurgical structure grants it high thermal conductivity and reduced thermal expansion, making it suitable for applications requiring dimensional stability under heat, such as automotive exhaust systems and heat exchangers. However, ferritic stainless steel has lower ductility and toughness compared to austenitic varieties, particularly at low temperatures, which limits its use in certain structural applications. Its magnetic properties and affordability make it a popular choice for a variety of industrial and domestic uses.
Properties of Martensitic Stainless Steel
Martensitic stainless steel is known for its high strength, hardness, and moderate corrosion resistance, making it especially suitable for applications requiring wear resistance and durability. This type of stainless steel is primarily composed of chromium and carbon, and it can be hardened through heat treatment to achieve superior mechanical properties. However, it generally has lower corrosion resistance than austenitic or ferritic stainless steels due to its higher carbon content. Martensitic stainless steel is magnetic and commonly used in the manufacturing of cutlery, surgical instruments, valves, and certain aerospace components. Its brittleness can be a limitation, but tempered martensitic grades provide an improved balance of strength and toughness.

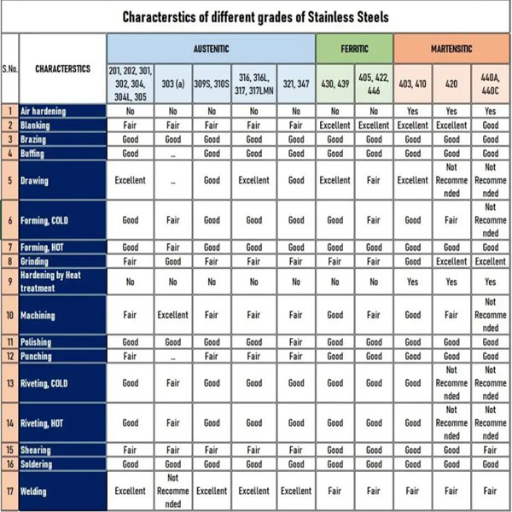

How to Read a Stainless Steel Grades Chart?
Understanding a stainless steel grades chart involves identifying specific information about the material’s composition, properties, and applications. Each grade is usually represented by a numerical code and sometimes a letter that indicates its chemical makeup, such as chromium, nickel, or carbon content. Look for indicators of corrosion resistance, strength, and heat tolerance, which are often listed as percentages or performance metrics. Additionally, the chart will often highlight whether the grade belongs to the austenitic, ferritic, martensitic, duplex, or precipitation-hardened family, helping you select the appropriate material for your specific needs. Always reference the chart’s key or legend for detailed explanations of terms and abbreviations.

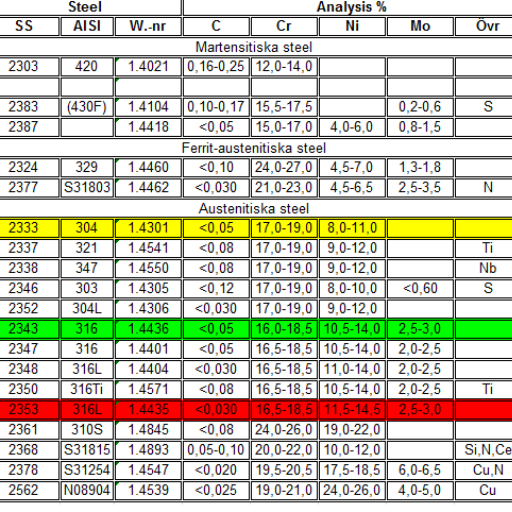

Identifying Key Elements in Steel Grades Chart
When identifying key elements in a steel grades chart, it is crucial to focus on the composition, mechanical properties, and intended applications of each grade. Typically, the chart will detail the percentage of essential elements like carbon, chromium, nickel, and molybdenum, as these directly influence the material’s performance. Mechanical properties such as tensile strength, yield strength, and elongation are often included to gauge load-bearing capacity and flexibility. Furthermore, the chart outlines specific standards and classifications, which denote compliance with global industry benchmarks. Lastly, pay attention to notes on corrosion resistance, temperature performance, or welding characteristics to ensure the material aligns with your operational requirements.

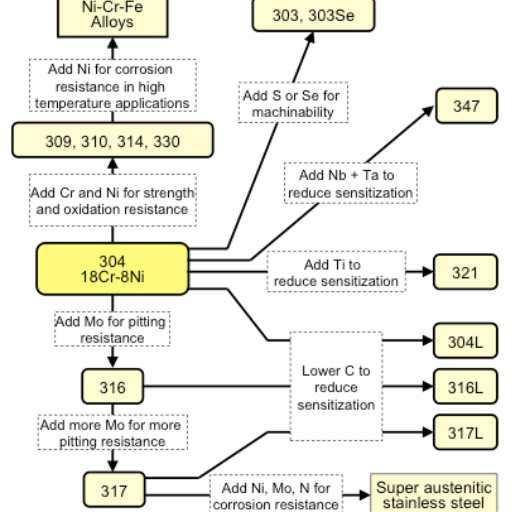

Understanding Stainless Steel Grade Classifications
Stainless steel grades are categorized based on their chemical composition and mechanical properties, which determine their suitability for various applications. The primary classifications include austenitic, ferritic, martensitic, duplex, and precipitation-hardened (PH) stainless steels.
Austenitic Stainless Steel is highly corrosion-resistant due to its high chromium and nickel content. It is non-magnetic, offers excellent weldability, and performs well in a wide range of environments, including marine and food processing industries.
Ferritic Stainless Steel contains lower chromium levels and no nickel. While it is magnetic and provides decent corrosion resistance, it is less ductile and less suitable for high-stress applications.
Martensitic Stainless Steel is known for its high hardness and strength, but it has lower corrosion resistance compared to other grades. It’s commonly used in applications like cutlery and surgical instruments.
Duplex Stainless Steel combines features of austenitic and ferritic grades. It offers excellent strength, corrosion resistance, and is widely used in chemical and oil industries.
Precipitation-Hardened Stainless Steel offers high strength and excellent resistance to corrosion and is often used in aerospace and other demanding environments.
Understanding the unique properties of these grades helps in selecting the right stainless steel for specific operational and environmental challenges. Always consult relevant standards for precise compliance requirements.
What Makes 304 and 316 Stainless Steel So Popular?
Both 304 and 316 stainless steel are widely used due to their exceptional corrosion resistance, durability, and versatility. 304 stainless steel is popular for its cost-effectiveness and excellent performance in a wide range of environments, making it suitable for applications like kitchen equipment, piping, and architectural structures. 316 stainless steel, on the other hand, contains added molybdenum, which enhances its resistance to chlorides and harsh chemicals, making it ideal for marine environments and industries like pharmaceuticals and food processing. These characteristics make both grades highly dependable and adaptable for diverse applications.
Comparing 304 Stainless Steel and 316 Stainless Steel
The primary difference between 304 and 316 stainless steel lies in their chemical composition, which impacts their respective performance in specific environments. 304 stainless steel has a high chromium and nickel content, making it a versatile and cost-effective option. However, it lacks significant resistance to salts and chemicals, which makes it less suitable for harsh or marine environments. 316 stainless steel, in contrast, contains additional molybdenum, enhancing its ability to withstand chloride corrosion and extreme conditions.
When it comes to cost, 304 stainless steel is generally more affordable due to its simpler composition, making it the preferred choice for general-purpose applications like kitchenware, household structures, and industrial equipment. On the other hand, the improved corrosion resistance of 316 stainless steel justifies its higher price point and is essential for critical environments such as marine equipment, medical devices, and chemical processing plants.
Ultimately, the choice between 304 and 316 stainless steel depends on the specific environmental conditions, required longevity, and budgetary constraints of the application.
The Role of Chromium and Nickel in Corrosion Resistance
Chromium and nickel play critical roles in enhancing the corrosion resistance of stainless steel. Chromium, a key element in all stainless steels, forms a thin, stable oxide layer on the surface of the metal, known as the passive layer. This passive layer acts as a barrier, preventing oxygen and moisture from causing rust. Generally, a higher chromium content increases resistance to oxidation and corrosion.
Nickel, on the other hand, not only aids in stabilizing the austenitic structure of stainless steel but also significantly improves its resistance to various types of corrosion, including pitting and crevice corrosion in harsh environments. Nickel helps maintain the material’s structural integrity, especially in high-temperature or chemically aggressive conditions, making it a vital component of alloys like 316 stainless steel.
Together, chromium and nickel synergize to provide durable, long-lasting protection against corrosion, enabling stainless steel to perform reliably across a wide range of industrial, marine, and medical applications. The balance of these elements is a determining factor in selecting the appropriate stainless steel grade for specific needs.
Applications of Grade 304 and Grade 316
Grade 304 stainless steel is widely used due to its versatility and excellent corrosion resistance. It is commonly applied in kitchen equipment such as sinks, cookware, and cutlery, as well as in architectural accents, food processing equipment, and manufacturing components. Its resilience in mild environments makes it an economical and practical choice for a broad range of everyday and industrial uses.
Grade 316 stainless steel, on the other hand, is renowned for its superior resistance to chloride and marine environments, thanks to its molybdenum content. This makes it ideal for applications in marine equipment, chemical processing, and medical instruments, such as surgical tools. Additionally, it is widely utilized in environments exposed to high salinity or harsh chemicals, like desalination plants, pharmaceutical industries, and coastal architectural projects. Both grades demonstrate reliability and durability, but the specific selection depends on the environmental and functional demands of the application.
Why is Duplex Stainless Steel Gaining Popularity?
Duplex stainless steel is gaining popularity due to its exceptional combination of strength and corrosion resistance. Its dual-phase microstructure, consisting of both ferritic and austenitic stainless steel, provides superior mechanical properties compared to traditional grades. This allows for thinner, lighter designs without compromising durability or performance. Additionally, duplex stainless steel offers excellent resistance to stress corrosion cracking and pitting, making it ideal for challenging environments like offshore oil rigs, chemical plants, and desalination facilities. Its cost-effectiveness, owing to reduced material requirements and enhanced longevity, further drives its adoption in various industries.
Advantages of Duplex Stainless Steel
uperior Strength and Durability
Duplex stainless steel combines the qualities of austenitic and ferritic grades, resulting in high tensile strength and exceptional durability. This allows for the creation of thinner and more lightweight components while maintaining structural integrity.
Outstanding Corrosion Resistance
It offers excellent resistance to stress corrosion cracking, pitting, and crevice corrosion, particularly in harsh environments. This makes it ideal for applications in marine, chemical, and industrial sectors where exposure to corrosive substances is common.
Cost Efficiency
The high strength-to-weight ratio and reduced material requirements lead to cost savings in production. Additionally, its extended lifespan minimizes maintenance and replacement costs over time.
Thermal and Mechanical Properties
Duplex stainless steel performs well under extreme temperatures and mechanical stress, making it suitable for heat exchangers, pressure vessels, and piping systems.
Sustainability
With reduced alloying elements like nickel and improved resource efficiency during production, duplex stainless steel contributes to more sustainable and eco-friendly industrial applications.
Comparing Duplex Stainless with Other Steel Types
When comparing duplex stainless steel to austenitic and ferritic steel types, several key distinctions emerge. Duplex stainless steel offers higher strength than austenitic steels, which allows for thinner, lighter components without sacrificing performance. This characteristic also makes it more cost-effective in structural applications. Unlike ferritic steel, duplex demonstrates superior resistance to stress corrosion cracking and pitting, especially in highly corrosive environments.
On the other hand, austenitic steels, such as 304 or 316 grades, are often easier to form and weld, making them a common choice for less demanding applications, though they lack the same durability in chloride-rich or high-stress conditions. Ferritic steels are generally more affordable and possess adequate corrosion resistance in less aggressive environments but fall short in strength and toughness compared to duplex steel.
Overall, duplex stainless steel strikes a balance between performance, durability, and cost-efficiency, making it the preferred choice for critical industrial applications where high mechanical strength and excellent corrosion resistance are indispensable.
How Does Carbon Steel Compare to Stainless Steel?
Carbon steel and stainless steel differ significantly in composition, properties, and applications. Carbon steel is primarily composed of iron and carbon, which gives it excellent strength and affordability but makes it more prone to corrosion without protective coatings. On the other hand, stainless steel contains chromium as a key element, which provides superior corrosion resistance and a bright, polished finish. While carbon steel is ideal for applications requiring strength and lower cost, stainless steel is better suited for environments where exposure to moisture or corrosive elements is common. Choosing between the two depends on the specific needs of the application, balancing factors like cost, strength, and resistance to wear or corrosion.
Differences in Corrosion Resistance and Strength
When examining corrosion resistance, stainless steel significantly outperforms carbon steel. Its chromium content forms a passive oxide layer on the surface, protecting it from rust and corrosion, even in harsh environments. This makes it suitable for marine, industrial, and exterior applications. Carbon steel, while strong and cost-effective, lacks this natural protective layer, making it more susceptible to rust, particularly in humid or wet conditions, unless treated with coatings or paint.
Regarding strength, both materials offer advantages depending on the context. Carbon steel has a higher tensile strength than many standard grades of stainless steel, making it ideal for applications requiring structural integrity under heavy loads. However, stainless steel maintains its strength better across a wide temperature range and provides greater ductility and toughness, especially in extreme conditions. The choice between the two ultimately depends on the specific balance of corrosion resistance, strength, and environmental exposure required by the application.
Understanding the Magnetic Properties
Magnetic properties differ significantly between carbon steel and stainless steel due to their chemical compositions. Carbon steel is generally magnetic because it primarily consists of iron and carbon, which allow for strong magnetic attraction. On the other hand, the magnetic behavior of stainless steel varies depending on its microstructure. Austenitic stainless steels, such as 304 and 316 grades, are typically non-magnetic due to their crystalline structure, although certain factors like cold working can induce slight magnetism. Ferritic and martensitic stainless steels, however, are magnetic because they retain a body-centered cubic structure that aligns with strong magnetic fields. When choosing a material based on magnetic properties, it is crucial to consider the application’s specific requirements, such as if a material must resist magnetic interference or interact with magnetic fields effectively.
What Are the Common Stainless Steel Grades in the Industry?
Due to their characteristics and versatility, many grades of stainless steel are used across industries:
304 Stainless Steel – Grade 304 is widely used due to good non magnetic corrosion resistance and weldability. Grade 304 is ideal for use in kitchen equipment and chemical containers and is suitable for architectural mouthpieces.
316 Stainless Steel – This grade is frequently used in marine appliances and medical devices due to its increased corrosion resistance from molybdenum content.316 also does well with chemical processing equipment.
430 Stainless Steel – With moderate corrosion resistance 430 is a cost lower ferritic steel that also possesses magnetic properties. This makes it useful for automotive trim, kitchen appliances and other decorative purposes.
Overview of Grade 420 Stainless Steel
Grade 420 stainless steel is a martensitic stainless steel known for its high strength, excellent wear resistance, and moderate corrosion resistance. With a composition that includes a higher carbon content than other stainless steels, it is capable of being hardened through heat treatment, making it ideal for applications requiring precision and durability. The material is often used in the manufacturing of cutlery, surgical instruments, dental tools, and mechanical parts such as shafts and blades.
Although it performs well in dry and mildly corrosive environments, Grade 420 is less suitable for highly corrosive or marine conditions without proper surface treatments. Its machinability and polishability allow for the production of sharp edges and smooth finishes, enhancing both functional and aesthetic qualities. Because this grade strikes a balance between affordability and performance, it is a go-to choice for industries seeking cost-effective yet reliable material solutions.
Features of 410 and 430 Stainless Steel
410 Stainless Steel:
410 stainless steel is a martensitic stainless steel grade noted for its strength and wear resistance. Its strength and moderate corrosion resistance makes it suitable for tough environments with some chemical exposure. Its 410 grade is commonly used in fasteners, valves, and compression springs due to their heat treatable properties. On the downside, it suffers from low corrosion resistance in highly acidic or saline environments. Its machinability is average, and the steel can attain a good polished finish.
430 Stainless Steel:
430 stainless steel is categorized as ferritic stainless steel and features good corrosion resistance in not-so-harsh environments with fine resistance to oxidation at high temperatures. Its high formability makes it a suitable material for automotive trim, kitchen appliances, and other decorative features. Unlike 410, 430 does not have the capability to be hardened with heat treatment. However, the lower carbon content offers improved weldability. Economical and available at mass, 430 stainless steel is popularly used in industrial and consumer products.
Applications and Benefits of 434 Stainless Steel
434 stainless steel is a ferritic alloy enhanced with molybdenum, providing improved corrosion resistance compared to 430 stainless steel, particularly in environments with chlorides or saltwater exposure. It is highly resistant to pitting and stress corrosion cracking, making it well-suited for marine equipment, automotive trim, and chemical processing applications. This alloy also exhibits excellent durability and oxidation resistance at high temperatures, ensuring reliability under demanding conditions.
Applications:
Automotive parts, such as exhaust systems and trim.
Marine applications, including components exposed to salty or briny environments.
Heat exchangers and other industrial equipment requiring high corrosion resistance.
Benefits:
Superior corrosion and oxidation resistance compared to 430 stainless steel.
Excellent formability and ease of fabrication.
Cost-effective performance for applications requiring durability in challenging environments.
434 stainless steel represents a balance of affordability, enhanced chemical resistance, and robust mechanical properties, making it a versatile material for various industries.
References
Frequently Asked Questions (FAQ)
Q: What is the purpose of a stainless steel grades chart?
A: A stainless steel grades chart helps in selecting the right stainless steel for specific applications by categorizing different grades based on their properties such as corrosion resistance and strength. It allows users to compare the common grades and understand which grade is best suited for their needs.
Q: How does the grade of stainless steel affect its corrosion resistance?
A: The grade of stainless steel is crucial in determining its ability to resist corrosion. Different grades include varying levels of chromium, nickel, and other alloying elements which enhance their corrosion resistant properties. For example, 316 stainless steel contains molybdenum, which improves its resistance to corrosion and pitting.
Q: What are the four main types of stainless steel?
A: The four main types of stainless steel are austenitic, ferritic, martensitic, and duplex. Austenitic and ferritic stainless steels are particularly popular for applications requiring high resistance to corrosion. Each type has its own specific characteristics and is suited for different applications.
Q: What are some common grades of stainless steel?
A: Some common grades of stainless steel include 301 stainless steel, 316 stainless steel, 316L stainless steel, 409 stainless steel, 430 stainless steel, 434 stainless steel, and 444 stainless steel. Each grade offers different properties, making them suitable for various applications.
Q: How does the American Iron and Steel Institute (AISI) classification work?
A: The American Iron and Steel Institute (AISI) classification system assigns numbers to different stainless steel alloys based on their composition and properties. This system allows for easy identification and comparison of different grades, aiding in the selection of the appropriate steel alloy for specific uses.
Q: Why is grade 316L stainless steel preferred in marine environments?
A: Grade 316L stainless steel is preferred in marine environments due to its enhanced corrosion resistant properties. It contains higher nickel and molybdenum content, which provides superior resistance to chloride-induced corrosion, common in saltwater conditions.
Q: What are the applications of grade 440 stainless steel?
A: Grade 440 stainless steel is known for its high carbon content, which allows it to be hardened to a greater extent. This makes it suitable for applications requiring high strength and wear resistance, such as in cutlery, surgical instruments, and bearings.
Q: How does one choose the right stainless steel alloy for a specific application?
A: Choosing the right stainless steel alloy involves considering the required mechanical properties, corrosion resistance, and the specific environmental conditions the material will face. Reviewing the stainless steel grades chart and understanding the properties of different grades can help in making an informed decision.
Q: What is the difference between grade 430 and grade 434 stainless steel?
A: Grade 430 stainless steel is a ferritic, straight chromium alloy with moderate corrosion resistance and is often used in automotive trim and appliances. Grade 434 stainless steel, on the other hand, contains molybdenum, which enhances its corrosion resistant properties, making it better suited for outdoor applications or those in corrosive environments.
