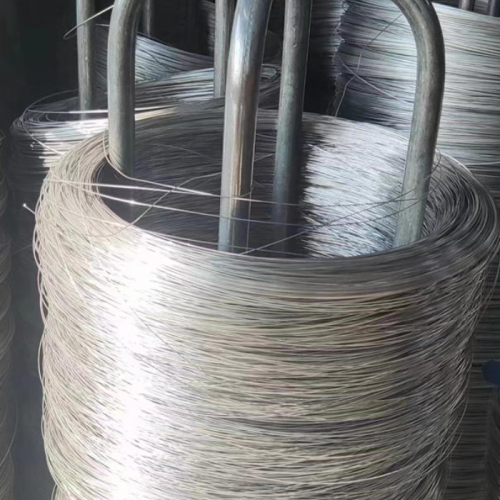

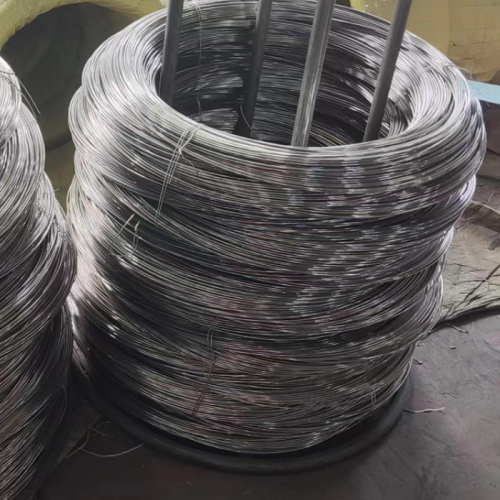

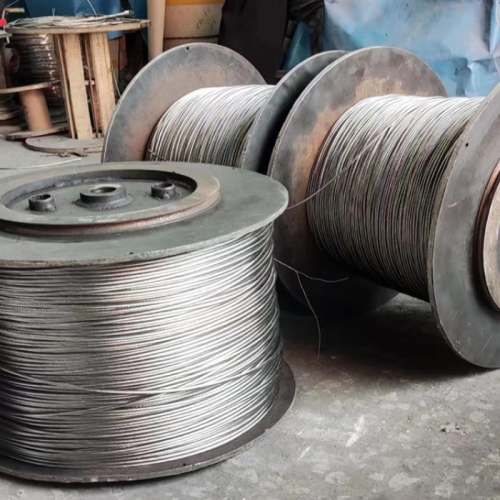

316 Stainless Steel Wire – Premium Quality From A Leading China Manufacturer
316 Stainless Steel Wire, produced by our expert China manufacturer, is a versatile, molybdenum-enhanced austenitic stainless steel known for its superior corrosion resistance and strength. Ideal for harsh environments, this product shines in industries like marine, chemical processing, and medical manufacturing. Whether you need 316 stainless steel spring wire or 316 steel wire mesh, our factory delivers durability and precision tailored to your needs.
Price: Contact Us for a Custom Quote
For competitive pricing on 316 Stainless Steel Wire, contact our sales team for a personalized quote. Pricing varies based on wire diameter, length, and order volume—request yours today!
Specifications
Here are the technical details for 316 SS Wire:
- Wire Diameter: 0.02 mm – 10 mm (customizable, including 316 Wire Diameter options)
- Length: Standard coils or 316 Customized Length available
- Thickness Tolerance: ±0.01 mm
- Surface Finish: Bright annealed, polished, or matte
- Packaging: Spools, coils, or straight lengths
- Standards: ASTM A580, EN 1.4401
Contact our distributor for specific requirements!
Features (Advantages)
Why choose 316 SS Wire from our enterprise?
- Exceptional Corrosion Resistance: Enhanced with molybdenum, it resists pitting in chloride-rich environments.
- High Strength: Offers durability even under stress or high temperatures.
- Versatile Processing: Easy to weld, cut, and form into 316 ss wire mesh or springs.
- Aesthetic Appeal: Smooth, shiny finish for decorative applications.
- Non-Magnetic: Ideal for sensitive electronic or medical uses.
Applications
316 SS Wire serves a wide range of industries:
- Marine: Boat fittings, underwater cables, and 316 steel wire mesh for filtration.
- Chemical Processing: Tanks, valves, and pipes exposed to corrosive substances.
- Medical: Surgical instruments and implants due to its biocompatibility.
- Food Industry: 316 ss wire mesh for processing equipment, safe and hygienic.
- Construction: Structural supports and decorative elements.
Chemical Composition
| Element | Symbol | Weight % |
|---|---|---|
| Chromium | Cr | 16.0 - 18.0 |
| Nickel | Ni | 10.0 - 14.0 |
| Molybdenum | Mo | 2.0 - 3.0 |
| Carbon | C | ≤ 0.08 |
| Manganese | Mn | ≤ 2.0 |
| Silicon | Si | ≤ 1.0 |
| Phosphorus | P | ≤ 0.045 |
| Sulfur | S | ≤ 0.03 |
| Iron | Fe | Balance |
Mechanical Properties
| Property | Units | Typical Value | Range |
|---|---|---|---|
| Tensile Strength | MPa | 580 | 515 - 690 |
| Yield Strength (0.2% Offset) | MPa | 290 | ≥ 205 |
| Elongation | % | 50 | ≥ 40 |
| Hardness (Rockwell B) | HRB | 85 | ≤ 95 |
| Hardness (Brinell) | HB | 170 | ≤ 217 |
| Modulus of Elasticity | GPa | 193 | 190 - 205 |
| Density | g/cm3 | 8 | 7.95 - 8.03 |
| Fatigue Strength | MPa | 260 | 240 - 300 |
| Shear Strength | MPa | 400 | 350 - 450 |
| Impact Toughness (Charpy) | J (at 20°C) | 100 | 90 - 120 |
Chemical Properties
316 SS Wire resists various chemicals effectively:
- Acids: Good resistance to acetic and phosphoric acids; moderate against sulfuric acid.
- Alkaline Solutions: Stable in mild alkaline conditions.
- Chlorides: Superior resistance to pitting in chloride environments (e.g., saltwater), outperforming 304 wire.
However, prolonged exposure to strong acids or high chloride concentrations may require protective measures.
Things to Note (Limitations)
While 316 SS Wire excels in many areas, consider these limitations:
- High Temperatures: Prolonged use above 500°C may reduce corrosion resistance.
- Strong Acids: Not ideal for concentrated sulfuric or hydrochloric acid environments.
- Cost: Higher alloy content makes it pricier than 304-grade wire.
Corrosion Data
| Environment | Corrosion Rate (mm/year) | Resistance Level |
|---|---|---|
| Fresh Water | < 0.01 | Excellent |
| Salt Water (3.5% NaCl) | 0.1 - 0.5 | Moderate |
| Humid Air | < 0.05 | Good |
| Nitric Acid (10%) | 0.05 - 0.1 | Good |
| Sulfuric Acid (3%) | 0.5 - 1.0 | Poor |
Contact us for detailed corrosion resistance data specific to your application.
Welding and Fabrication Tips
For optimal results with 316 SS Wire:
- Welding: Use TIG or MIG methods with 316 or 316L filler to maintain corrosion resistance. Post-weld annealing isn’t typically needed.
- Forming: Cold working enhances strength; suitable for 316 ss wires in mesh or spring production.
- Machining: Use sharp tools and coolant to manage its toughness.
Our China factory ensures precision in every step.
Customer Reviews
Frequently Asked Questions
Q: How does 316 Stainless Steel Wire compare to 304?
A: 316 SS Wire has molybdenum for better corrosion resistance, especially in saltwater.
Q: Can I order a 316 Customized Length?
A: Absolutely—our factory tailors ss 316 wire to your specs.
Q: Is 316 ss steel wire good for high temperatures?
A: It’s solid up to 500°C, but avoid continuous high heat.
Q: What’s the smallest diameter available for 316 Stainless Steel Wire?
A: Our 316 SS Wire starts at a fine 316 Wire Diameter of 0.02 mm, perfect for precision applications like medical devices or fine 316 steel wire mesh. Diameters go up to 10 mm for heavier-duty uses. Tell us your project, and we’ll match the size!
Q: How does 316 Stainless Steel Wire perform in saltwater?
A: It’s a champ! Thanks to its molybdenum content, 316 SS Wire resists pitting and crevice corrosion in saltwater far better than 304. It’s a top pick for marine environments—think boat fittings or 316 ss wire in coastal projects. Just rinse it occasionally to extend its life.
