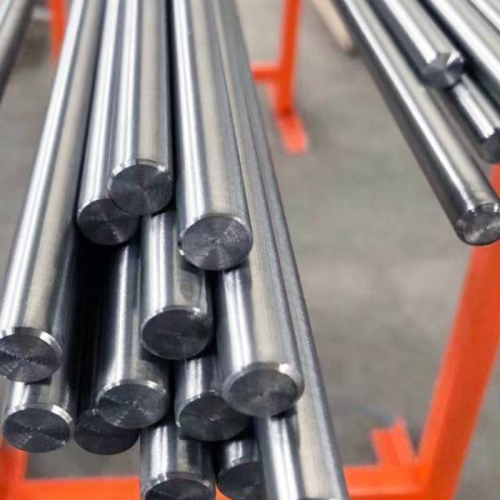

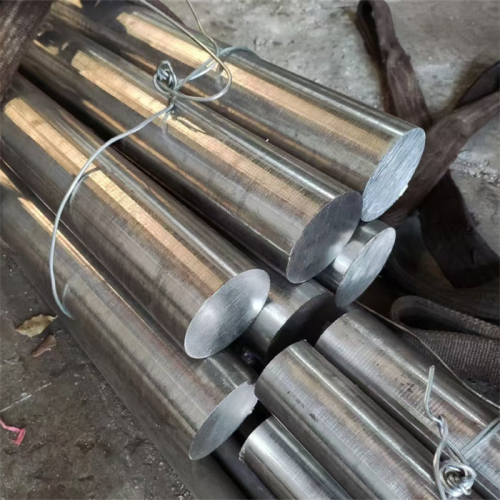

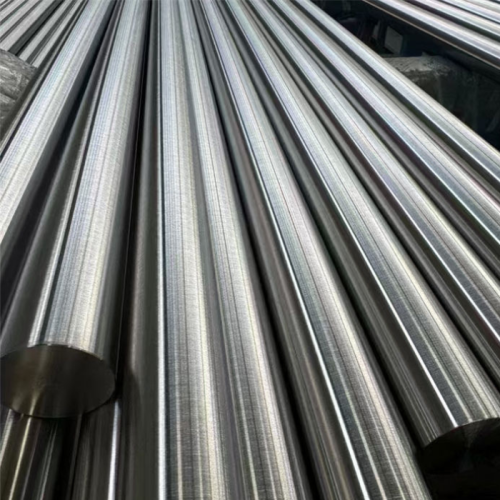

Grade 9 Titanium Alloy Rod Manufacturer in China – High-Strength Titanium Solutions
The Grade 9 Titanium Alloy Rod, also known as Ti-3Al-2.5V or Grade 9 titanium rod, is a high-strength titanium alloy offering excellent corrosion resistance, weldability, and moderate strength. Compared to Grade 5, it provides superior formability and is widely used in applications requiring a balance of strength and workability. As a leading Grade 9 Titanium Alloy Rod manufacturer in China, we deliver top-quality rods for industries demanding reliable titanium solutions.
Price: Contact Us for a Custom Quote
For the most competitive pricing on Grade 9 Titanium Alloy Rod, reach out to our sales team directly. We offer customized quotes for Grade 9 Titanium Alloy Rod price based on your specific requirements, including dimensions, quantity, and delivery timelines. Contact us today to discuss your needs!
Specifications of Grade 9 Titanium Alloy Rod
- Diameter Range: 5 mm to 300 mm
- Length: Up to 6000 mm (custom lengths available)
- Surface Finish: Hot rolled, cold drawn, polished, or as per request
- Standards: ASTM B348, AMS 4943, MIL-T-9046
- Shape Variants: Grade 9 bar of titanium, round bar, hexagonal bar
- Tolerances: As per ASTM standards or customer specifications
Key Features (Advantages)
- Balanced Strength: Offers higher strength than Grade 2 but better formability than Grade 5, ideal for Grade 9 titanium bar applications.
- Corrosion Resistance: Exceptional resistance to seawater, acids, and alkalis, perfect for Grade 9 titanium industrial bar.
- Weldability: Superior weldability compared to other titanium alloys, enhancing its versatility.
- Lightweight: Stronger than aluminum yet lightweight, suitable for Grade 9 titanium round bar in weight-sensitive designs.
- Fatigue Resistance: Excellent performance under cyclic loading, outperforming many metals in durability.
Applications of Grade 9 Titanium Alloy Rod
- Aerospace: Hydraulic tubing, airframe components, and lightweight fittings using Grade 9 titanium rod.
- Marine: Shipbuilding components, subsea equipment, and desalination systems.
- Sports Equipment: Bicycle frames, golf club shafts, and high-performance gear made from Grade 9 bar of titanium.
- Medical: Surgical instruments and lightweight medical devices due to biocompatibility.
- Chemical Processing: Piping, valve components, and heat exchanger rods requiring Grade 9 titanium industrial bar.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Titanium (Ti) | Balance |
| Aluminum (Al) | 2.5–3.5 |
| Vanadium (V) | 2.0–3.0 |
| Iron (Fe) | 0.25 max |
| Oxygen (O) | 0.15 max |
| Carbon (C) | 0.08 max |
| Nitrogen (N) | 0.03 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 620 MPa (min) |
| Yield Strength (0.2% offset) | 483 MPa (min) |
| Elongation | 15% (min) |
| Hardness (Rockwell C) | 24 HRC (typical) |
| Density | 4.48 g/cm³ |
Chemical Properties
Grade 9 Titanium Alloy Rod exhibits excellent resistance to corrosive environments:
- Acids and Alkalis: Strong resistance to dilute acids like sulfuric and hydrochloric; good resistance to alkalis; moderate resistance to concentrated acids.
- Seawater: Exceptional resistance to pitting and crevice corrosion in marine environments, ideal for Grade 9 titanium bar in marine applications.
- Environmental Limits: Performs best below 400°C in oxidizing conditions; may experience reduced corrosion resistance in highly reducing environments without surface treatment.
Things to Note (Limitations)
- High-Temperature Limits: Above 400°C, strength decreases; not recommended for prolonged exposure beyond 500°C.
- Reducing Acids: Limited resistance to hot concentrated reducing acids; protective coatings may be required in such conditions.
- Machining Challenges: Work-hardens during machining; requires low speeds, sharp tools, and proper cooling for Grade 9 titanium rod production.
- Cost: Higher cost compared to aluminum or stainless steel due to raw material and processing expenses.
Corrosion Data
| Environment | Corrosion Rate (mm/year) | Conditions | Notes |
|---|---|---|---|
| Stagnant Seawater | <0.001 | 25°C, 12 months exposure | No pitting observed |
| 5% Sulfuric Acid | 0.015 | 30°C, 3 months exposure | Good resistance in dilute solutions |
| 5% Hydrochloric Acid | 0.04 | 25°C, 1 month exposure | Moderate resistance |
| Atmospheric (Coastal, Humid) | <0.001 | 25°C, 12 months exposure | Excellent resistance |
| 5% Sodium Hydroxide (Alkaline) | <0.002 | 40°C, 3 months exposure | Excellent resistance |
| 5% Nitric Acid | <0.001 | 30°C, 3 months exposure | Superior resistance |
Welding and Manufacturing Tips
- Welding: Use TIG welding with pure argon shielding to prevent contamination; filler metals like ERTi-9 are recommended. Weld in a clean environment to avoid embrittlement.
- Forming: Excellent formability; can be cold or hot formed; hot forming should be done between 600°C and 800°C.
- Machining: Use low cutting speeds, high feed rates, and abundant coolant; suitable for producing Grade 9 titanium round bar but requires care to avoid galling.
- Heat Treatment: Annealing at 600–800°C followed by air cooling can relieve stresses and improve ductility.
Customer Reviews
Frequently Asked Questions
Q1: What advantages does Grade 9 Titanium Alloy Bar offer over Grade 2 titanium?
A: Grade 9 Titanium Alloy Rod (Ti-3Al-2.5V) provides higher strength and better fatigue resistance than Grade 2, while retaining excellent corrosion resistance and weldability, making it ideal for applications requiring enhanced mechanical properties.
Q2: Is Grade 9 Titanium Alloy Rod suitable for cryogenic applications?
A: Yes, Grade 9 Titanium based Alloy Rod maintains good ductility and toughness at cryogenic temperatures, making it a viable option for low-temperature applications like aerospace fuel lines or cryogenic storage components.
Q3: How does Grade 9 Titanium Alloy Bar perform in high-stress environments compared to stainless steel?
A: Grade 9 Titanium Alloy Rod offers a superior strength-to-weight ratio and better corrosion resistance than most stainless steels, especially in seawater or acidic conditions, making it a preferred choice for high-stress, corrosive environments.
Q4: Can Grade 9 Titanium Alloy Bar be customized for specific project requirements?
A: Absolutely, we offer customization options such as specific diameters, lengths, and surface finishes for Grade 9 titanium rod to meet your project needs. Contact us to discuss your specifications.
Q5: What testing standards apply to Grade 9 Titanium Alloy Rod?
A: Our Grade 9 Titanium based Alloy Rod meets standards like ASTM B348 and AMS 4943. We provide material test certificates (MTC) with each order and can include additional testing upon request, such as ultrasonic or tensile tests.
Q6: Why is Grade 9 Titanium Alloy Bar a good choice for sports equipment?
A: Grade 9 Titanium Alloy Rod combines lightweight properties with high strength and excellent formability, making it perfect for sports equipment like bicycle frames or golf club shafts where performance and durability are key.
