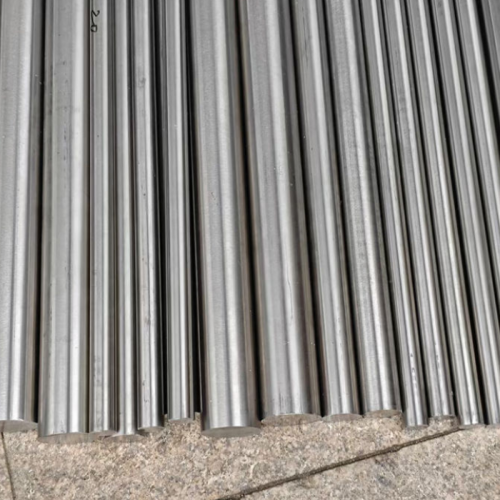

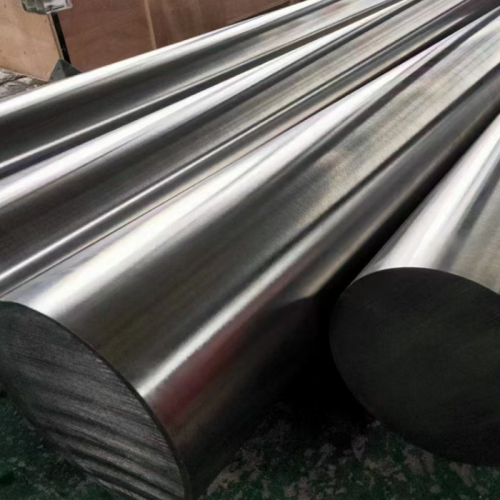

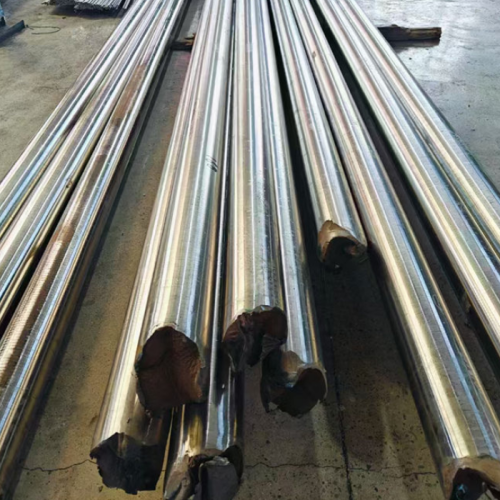

TA9 Titanium Alloy Bar – High-Quality Titanium Alloy Bar From A Leading China Manufacturer
The TA9 Titanium Alloy Bar is a highly versatile and reliable material widely recognized for its superior strength, corrosion resistance, and lightweight nature. This alloy is ideally suited for applications across aerospace, medical devices, chemical processing, and automotive industries, where both performance and durability are critical. Its exceptional properties make it a preferred choice for demanding environments that require long-term performance.
Price: Contact Us for a Custom Quote
Contact our sales team for a quote on TA9 Titanium Alloy Bar pricing, tailored to your project needs.
Specifications of TA9 Titanium Alloy Bar
- Material Grade: TA9 (Equivalent to ASTM Grade 12)
- Diameter Range: Customizable from 10 mm to 300 mm
- Length: Standard lengths or customized as required
- Surface Treatment: Polished, pickled, or sandblasted finishes
- Standards: ASME SB348, ASTM B348, AMS specifications available
Features (Advantages)
- High Corrosion Resistance: Excellent resistance to oxidizing chemicals, seawater, and chloride-based environments.
- Superior Strength-to-Weight Ratio: Lightweight yet incredibly strong, ensuring high performance with reduced load weights.
- Exceptional Weldability: The material is easy to weld using standard industry methods, allowing ease of fabrication.
- Thermal Stability: Performs efficiently under high-temperature conditions.
Applications
- Aerospace Industry: Engine components, airframe structures, and fasteners.
- Chemical Processing: Heat exchangers, piping, and reactor vessels for processing highly corrosive substances.
- Medical Devices: Orthopedic implants, surgical instruments, and dental applications.
- Marine Environments: Offshore platforms, shipbuilding, and submarine parts.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Titanium (Ti) | 99.6 |
| Oxygen (O) | ≤ 0.08 |
| Nitrogen (N) | ≤ 0.03 |
| Carbon (C) | ≤ 0.08 |
| Hydrogen (H) | ≤ 0.015 |
| Iron (Fe) | ≤ 0.20 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≥ 490 MPa |
| Yield Strength | ≥ 345 MPa |
| Elongation | ≥ 25% |
| Reduction of Area | ≥ 30% |
| Hardness | Approx. 160 HB |
Chemical Properties
TA9 Titanium Alloy delivers excellent resistance against environmental and chemical challenges:
- Withstands exposure to saltwater and marine atmospheres.
- Superior resistance to oxidizing and reducing agents.
- Safe and effective in environments with moderate acidic and alkaline interactions.
Things to Note (Limitations)
While highly durable and versatile, TA9 Titanium Alloy Bar may encounter challenges in high-temperature environments exceeding 400°F. Additionally, exposure to strongly concentrated acids and alkalis for extended periods may lead to performance limitations.
Corrosion Data
| Environment | Resistance Level (Grade 1-10) |
|---|---|
| Seawater | 9 |
| Acidic Solutions | 8 |
| Alkaline Solutions | 8 |
| Atmospheric Exposure | 10 |
Contact us for detailed corrosion resistance data specific to your application.
Welding and Fabrication Tips
For optimal results, TA9 Titanium Alloy Bar should be welded using techniques such as TIG (Tungsten Inert Gas) welding, ensuring clean, precise joints. Fabrication processes should avoid contamination, and forming is best achieved using cold-forming techniques to maintain high-strength properties.
Customer Reviews
Frequently Asked Questions
Q: What makes TA9 Titanium Alloy different from pure titanium?
A: TA9 offers enhanced mechanical and chemical properties, including higher strength and superior corrosion resistance.
Q: What industries prefer TA9 Titanium Alloy Bar?
A: Industries such as aerospace, medical, marine, and chemical processing rely on TA9 due to its versatility and performance.
Q: Can I use TA9 for high-temperature applications?
A: While it withstands moderate temperatures, environments exceeding 400°F may affect performance.
Q: Why choose TA9 over alternative titanium alloys?
A: TA9 balances strength, corrosion resistance, and affordability, making it ideal for diverse applications.
Q:What sizes and finishes are available?
A: Standard and custom sizes with polished or anodized finishes can be tailored to specific requirements.
