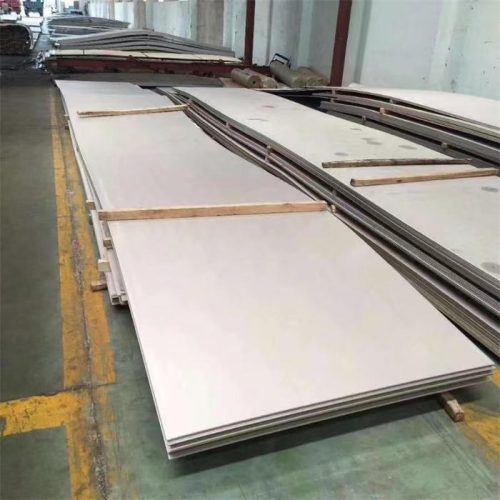

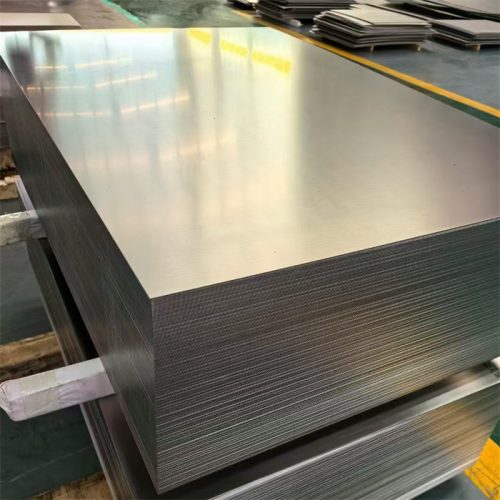

Grade 23 Titanium Alloy Sheet – Precision Crafted by China Manufacturer
The Grade 23 Titanium Alloy Sheet, also known as Ti-6Al-4V ELI (Extra Low Interstitial), is a premium titanium alloy sheet prized for its exceptional strength, biocompatibility, and corrosion resistance. Manufactured by our expert China factory, this titanium sheet is refined with lower oxygen, nitrogen, and iron content compared to Grade 5, offering enhanced ductility and toughness. Ideal for critical applications, it’s a top choice among titanium alloy sheet manufacturers for industries demanding precision and reliability.
Price: Contact Us for a Custom Quote
To receive a tailored Grade 23 Titanium Alloy Sheet price, submit your inquiry via our website’s contact form. Pricing varies based on dimensions, thickness, quantity, and options like custom processing. Our team will provide a competitive quote quickly to suit your project’s needs and timeline.
Specifications of Grade 23 Titanium Alloy Sheet
Our Titanium Alloy Sheets comes in a range of specifications:
- Thickness: 0.5 mm to 100 mm
- Width: Up to 2000 mm
- Length: Up to 6000 mm, customizable via custom processing
- Surface Finish: Cold rolled, annealed, polished, pickled
- Standards: ASTM B265, ASME SB265, ASTM F136
- Type: Cold rolled titanium sheet, seamless or welded edges
- UNS Designation: R56401
Key Features (Advantages)
- Superior biocompatibility, perfect for medical implants
- High strength-to-weight ratio, ideal for lightweight titanium metal plates
- Excellent corrosion resistance in harsh environments
- Enhanced ductility and fracture toughness compared to Grade 5
- Precision finishes available through custom processing
- Trusted quality from a leading China manufacturer
Applications
The Grade 23 Alloy Sheet excels in demanding sectors:
- Medical: Surgical implants, dental devices, and orthopedic plates
- Aerospace: Structural components and airframe parts with titanium alloy plates
- Marine: Corrosion-resistant panels and fittings
- Chemical Processing: Equipment using durable sheets of titanium
- Automotive: Lightweight, high-strength titanium plate applications
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Titanium (Ti) | Balance (~90%) |
| Aluminum (Al) | 5.5 - 6.75 |
| Vanadium (V) | 3.5 - 4.5 |
| Oxygen (O) | 0.13 max |
| Nitrogen (N) | 0.05 max |
| Iron (Fe) | 0.25 max |
| Carbon (C) | 0.08 max |
| Hydrogen (H) | 0.0125 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 860 - 965 MPa |
| Yield Strength | 795 - 860 MPa |
| Elongation | ≥10% |
| Hardness (Rockwell C) | ≤36 HRC |
Chemical Properties
The Grade 23 Titanium Plates resists various corrosive agents:
- Acids: Good resistance to reducing acids like hydrochloric
- Alkalis: Strong performance in caustic environments
- Limitations: Less effective in highly oxidizing acids or hot chloride solutions
Its low interstitials enhance biocompatibility and corrosion resistance.
Things to Note (Limitations)
When using a Grade 23 Alloy Sheet, consider these factors:
- Avoid temperatures above 427°C (800°F) for prolonged periods to prevent embrittlement
- Not ideal for highly oxidizing environments—Grade 7 may be better
- Poor shear strength limits use in high-wear sliding applications
Corrosion Data
| Environment | Corrosion Resistance |
|---|---|
| Atmospheric (Dry) | Excellent, minimal degradation |
| Seawater | Very good, resists pitting |
| Hydrochloric Acid (HCl) | Good in non-aerated conditions |
| Oxidizing Acids (HNO3) | Moderate, potential for surface attack |
Best Welding and Manufacturing Practices
Fabricating a Titanium Grade 23 Sheet is efficient with proper techniques:
- Welding Methods: TIG or plasma arc welding with Ti-6Al-4V filler
- Tips: Use inert gas shielding to prevent oxygen pickup; anneal post-weld if needed

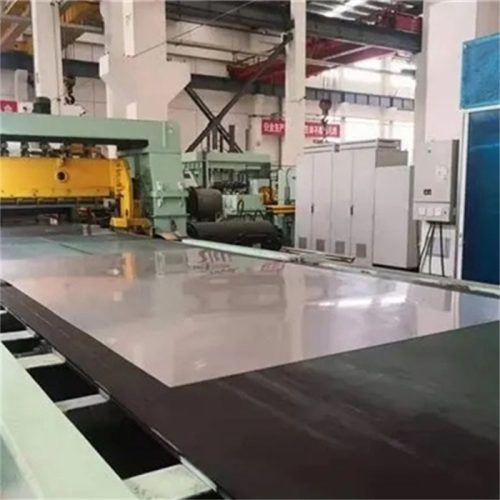

- Custom Processing: Cold rolling, cutting, and shaping for precise titanium alloy plates
Our China factory excels in delivering tailored sheets of titanium.
What Customers Say
Frequently Asked Questions
Q: How does Grade 23 Titanium Alloy differ from Grade 5?
A: Grade 23 Titanium Alloy has lower interstitials—oxygen, nitrogen—making it more ductile and biocompatible than Grade 5, though slightly less strong. Perfect for implants over heavy-duty parts.
Q: Why’s it a big deal in medical applications?
A: Its biocompatibility and toughness make this titanium alloy sheet a rock star for implants—think hip replacements or dental plates. It plays nice with the body and lasts.
Q: Can I use this titanium sheet outdoors long-term?
A: Yep, it handles seawater and weather well, but skip it for super acidic or hot spots—those push its limits. Great for marine titanium plates, though!
Q: What industries lean on this alloy sheet?
A: Medical’s the star, but aerospace, marine, and chemical folks love Titanium Alloy too—anywhere strength and corrosion resistance matter.
Q: How quick can I get a price quote?
A: Send us your specs—thickness, size, quantity—via the site, and our China team will fire back a Grade 23 Titanium Alloy Sheet price within 24 hours.
Q: Does custom processing change the game?
A: Absolutely! Custom processing tailors your titanium metal plate—cut, rolled, finished—to fit tight specs, saving you rework and boosting performance.
