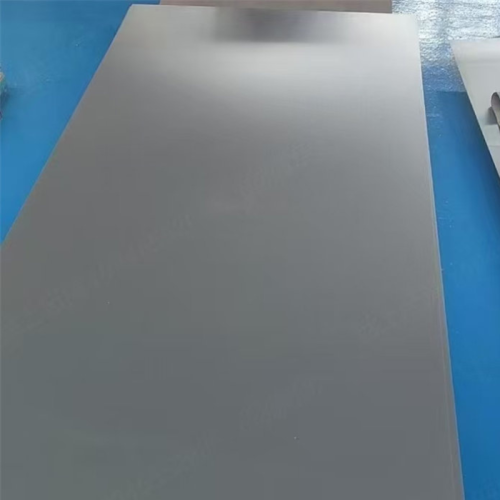

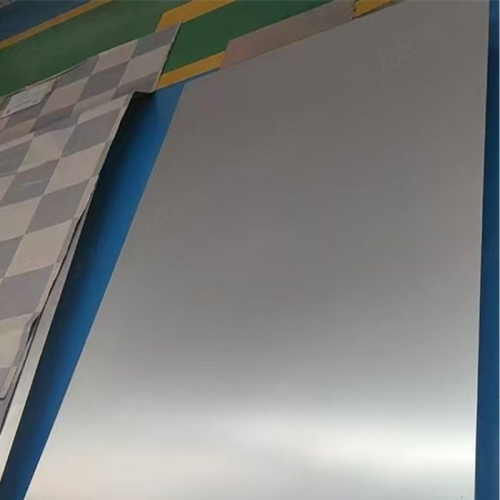

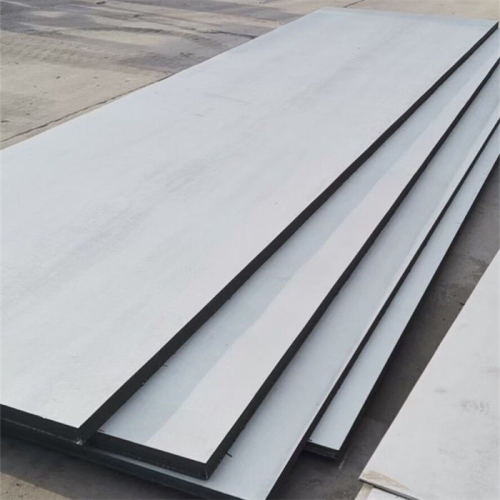

Grade 9 Titanium Alloy Sheet Manufacturer in China – Versatile Titanium Solutions
The Grade 9 Titanium Alloy Sheet, also known as Ti Grade 9 or Ti-3Al-2.5V, is a high-strength titanium alloy offering a unique combination of excellent corrosion resistance, weldability, and moderate strength. Compared to Grade 5, it provides better formability and is easier to work with. As a premier Grade 9 Titanium Alloy Sheet manufacturer in China, we supply high-quality sheets for industries requiring reliable and versatile materials.
Price: Contact Us for a Custom Quote
For the most competitive pricing on Grade 9 Titanium Alloy Sheet, reach out to our sales team directly. We offer customized quotes for Grade 9 Titanium Alloy Plate price based on your specific requirements, including dimensions, quantity, and delivery timelines. Contact us today to discuss your needs!
Specifications of Grade 9 Titanium Alloy Sheet
Our Grade 9 Titanium Alloy Sheet, including Grade 9 titanium plate and Grade 9 cold rolled titanium sheet, is available in various dimensions and finishes. Below are the typical specifications:
- Thickness Range: 0.5 mm to 50 mm
- Width: Up to 2000 mm
- Length: Up to 6000 mm (custom lengths available)
- Surface Finish: Hot rolled, cold rolled, pickled, polished, or as per request
- Standards: ASTM B265, AMS 4943, MIL-T-9046
- Type: Grade 9 sheets of titanium, available in hot rolled or cold rolled forms
- Tolerances: As per ASTM standards or customer specifications
Key Features (Advantages)
- Moderate Strength: Offers higher strength than Grade 2 but better formability than Grade 5 titanium sheet.
- Corrosion Resistance: Exceptional resistance to saltwater, acids, and industrial chemicals, ideal for Grade 9 titanium metal plate.
- Weldability: Superior weldability compared to other titanium alloys, making it suitable for Grade 9 Custom Processing.
- Lightweight: Approximately 60% denser than aluminum but much stronger, perfect for weight-sensitive applications.
- Versatility: Can be cold formed and machined into Grade 9 titanium plate with ease.
Applications of Grade 9 Titanium Alloy Sheet
The Grade 9 Titanium Alloy Sheet is widely used in industries requiring a balance of strength, corrosion resistance, and formability. Key applications include:
- Aerospace: Hydraulic tubing, airframe components, and exhaust systems using Grade 9 titanium sheet.
- Marine: Shipbuilding components, subsea equipment, and desalination plants.
- Medical: Surgical instruments and lightweight medical devices.
- Sports Equipment: Bicycle frames, golf club shafts, and other high-performance gear.
- Chemical Processing: Heat exchanger plates, pressure vessels, and piping systems made from Grade 9 sheets of titanium.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Titanium (Ti) | Balance |
| Aluminum (Al) | 2.5–3.5 |
| Vanadium (V) | 2.0–3.0 |
| Iron (Fe) | 0.25 max |
| Oxygen (O) | 0.15 max |
| Carbon (C) | 0.08 max |
| Nitrogen (N) | 0.03 max |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 620 MPa (min) |
| Yield Strength (0.2% offset) | 483 MPa (min) |
| Elongation | 15% (min) |
| Hardness (Rockwell C) | 24 HRC (typical) |
| Density | 4.48 g/cm³ |
Chemical Properties
Grade 9 Titanium Alloy Sheet exhibits excellent resistance to corrosive environments:
- Acids and Alkalis: Strong resistance to dilute acids like sulfuric and hydrochloric; good resistance to alkalis; moderate resistance to concentrated acids.
- Seawater: Exceptional resistance to pitting and crevice corrosion in marine environments, ideal for Grade 9 titanium metal plate in marine applications.
- Environmental Limits: Performs best below 400°C in oxidizing conditions; may experience reduced corrosion resistance in highly reducing environments without proper surface treatment.
Things to Note (Limitations)
- High-Temperature Limits: Above 400°C, strength decreases; not recommended for prolonged exposure beyond 500°C.
- Reducing Acids: Limited resistance to hot concentrated reducing acids; protective coatings may be required in such conditions.
- Machining Challenges: Work-hardens during machining; requires low speeds, sharp tools, and proper cooling for Grade 9 Custom Processing.
- Cost: Higher cost compared to aluminum or stainless steel due to raw material and processing expenses.
Corrosion Data
| Environment | Corrosion Rate (mm/year) | Conditions | Notes |
|---|---|---|---|
| Stagnant Seawater | <0.001 | 25°C, 12 months exposure | No pitting observed |
| 5% Sulfuric Acid | 0.015 | 30°C, 3 months exposure | Good resistance in dilute solutions |
| 5% Hydrochloric Acid | 0.04 | 25°C, 1 month exposure | Moderate resistance |
| Atmospheric (Coastal, Humid) | <0.001 | 25°C, 12 months exposure | Excellent resistance |
| 5% Sodium Hydroxide (Alkaline) | <0.002 | 40°C, 3 months exposure | Excellent resistance |
| 5% Nitric Acid | <0.001 | 30°C, 3 months exposure | Superior resistance |
Welding and Manufacturing Tips
- Welding: Use TIG welding with pure argon shielding to prevent contamination; filler metals like ERTi-9 are recommended. Weld in a clean environment to avoid embrittlement.
- Forming: Excellent formability, can be cold or hot formed; hot forming should be done between 600°C and 800°C. Suitable for producing Grade 9 cold rolled titanium sheet.
- Machining: Use low cutting speeds, high feed rates, and abundant coolant; ideal for Grade 9 Custom Processing but requires care to avoid galling.
- Heat Treatment: Annealing at 600–800°C followed by air cooling can relieve stresses and improve ductility.
Customer Reviews
Frequently Asked Questions
Q1: What are the key benefits of using Grade 9 Titanium Alloy Plate over Grade 2 titanium?
A: Grade 9 Titanium Alloy Sheet (Ti-3Al-2.5V) offers higher strength and better weldability than Grade 2 titanium, while maintaining excellent corrosion resistance. It’s ideal for applications needing a balance of strength and formability, such as aerospace tubing or marine components.
Q2: Is Grade 9 Titanium Alloy Sheet suitable for high-temperature applications?
A: Grade 9 Titanium Alloy Sheet performs well up to 400°C, but its strength decreases significantly above 500°C. For higher temperature applications, consider alloys like Grade 5 or consult our team for specific recommendations.
Q3: How does the corrosion resistance of Grade 9 Titanium Alloy Plate compare to stainless steel?
A: Grade 9 Titanium Alloy Sheet offers superior corrosion resistance to seawater, acids, and chlorides compared to most stainless steels, making it a preferred choice for marine and chemical processing environments where stainless steel might corrode over time.
Q4: Can Grade 9 Titanium Alloy Sheet be customized for specific applications?
A: Yes, we offer Grade 9 Custom Processing services, including cutting, forming, and surface treatments like polishing or pickling, to meet your exact specifications. Contact our sales team to discuss your needs.
Q5: What types of certifications are available for Grade 9 Titanium Alloy Plate?
A: Our Grade 9 Titanium Alloy Sheet complies with standards like ASTM B265 and AMS 4943. We provide material test certificates (MTC) with each shipment and can accommodate additional certifications upon request.
Q6: How does the cost of Grade 9 Titanium Alloy Sheet compare to other titanium grades?
A: Grade 9 Titanium Alloy Sheet is generally less expensive than Grade 5 due to its simpler alloy composition and processing, but more costly than Grade 2 because of its enhanced strength and properties. For a detailed comparison, request a quote tailored to your requirements.
