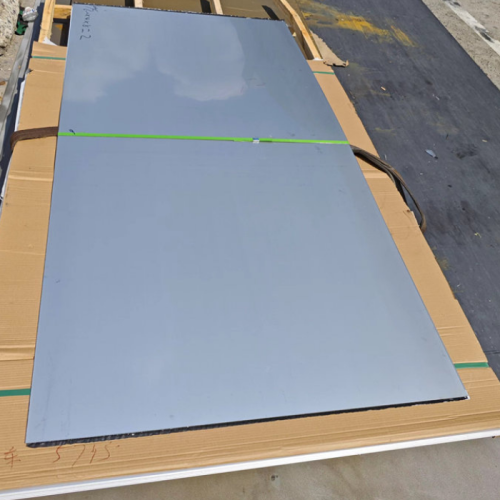

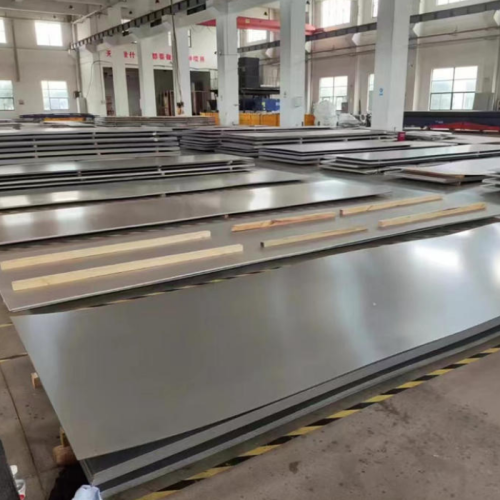

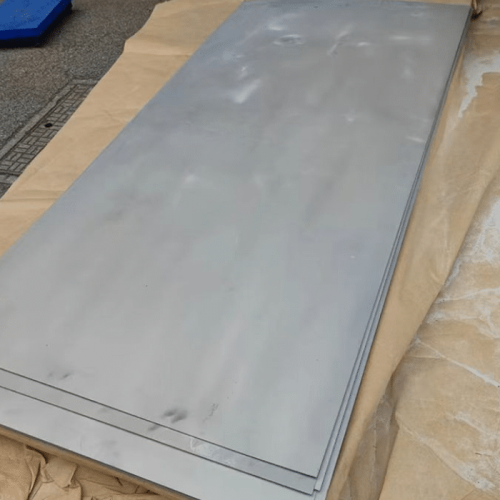

TA4 Titanium Alloy Sheet – Premium Quality Alloy Sheet Manufacturer in China

The TA4 Titanium Alloy Sheet is a high-strength, lightweight material known for its exceptional performance in demanding environments. This alloy demonstrates superior resistance to corrosion, high tensile strength, and excellent weldability, making it a preferred choice in industries such as aerospace, medical implants, and chemical processing.

Price: Contact Us for a Custom Quote

For pricing information and to request a detailed quote, please contact our factory directly. Pricing terms for the TA4 Titanium Alloy Sheet are available upon inquiry.

Specifications of TA4 Titanium Alloy Sheet

Thickness: 0.5mm to 50mm
Width: Up to 2000mm
Surface Treatment: Cold rolled or hot rolled with pickling finishes available

Key Features (Advantages)

High strength-to-weight ratio
Excellent resistance to atmospheric and chemical corrosion
High durability and prolonged service life
Superior weldability and machinability
Biocompatible, making it ideal for medical use

Applications

The TA4 Titanium Alloy Sheet serves various industries, including but not limited to:

Aerospace (aircraft structures and components)
Medical (orthopedic implants, prosthetics)
Chemical processing (corrosion-resistant equipment)
Marine engineering (sea-water handling systems)

Chemical Composition

Element	Percentage (%)
Titanium (Ti)	≥99.5
Iron (Fe)	≤0.20
Oxygen (O)	≤0.18
Carbon (C)	≤0.08
Nitrogen (N)	≤0.03
Hydrogen (H)	≤0.015

Mechanical Properties

Property	Value
Tensile Strength	240-350 MPa
Yield Strength	170-240 MPa
Elongation	≥24%
Hardness (HB)	120-160

Chemical Properties

The TA4 Titanium Alloy offers outstanding resistance to a wide variety of acids and alkalis, including chlorides and sulfates, enabling usage in highly aggressive environments. Biocompatibility also ensures safe use in medical implants.

Things to Note (Limitations)

TA4 Titanium Alloy Sheet is not recommended for environments with prolonged exposure to high temperatures above 400°C, as it may impact its mechanical properties.
Proper handling is necessary to avoid surface damage during processing.

Corrosion Data

Environment	Corrosion Resistance
Atmospheric (Urban/Rural)	Excellent
Seawater	Outstanding
Mild Acids (e.g., Acetic Acid)	Good
Strong Acids (e.g., Sulfuric Acid)	Moderate

Best Welding and Manufacturing Practices

TA4 Titanium Alloy Sheet supports a variety of welding techniques, including TIG and MIG welding. Optimal performance can be achieved by maintaining proper shielding with inert gases like argon. The alloy is also compatible with standard forming and processing techniques, including cold rolling and machining.

What Customers Say

Frequently Asked Questions

Q: What is the main advantage of the TA4 Titanium Alloy compared to regular titanium?

A: The TA4 Titanium Alloy offers enhanced strength and corrosion resistance while maintaining lightweight properties.

Q: Can TA4 Titanium Alloy Sheet be used for medical applications?

A: Yes, its biocompatibility makes it an excellent choice for medical implants and prosthetics.

Q: What industries benefit the most from using this material?

A: Aerospace, medical, and chemical processing industries are the primary beneficiaries.

Q: How does TA4 Titanium Alloy resist corrosion?

A: Its high titanium content and specific chemical properties create a naturally protective oxide layer, offering outstanding corrosion resistance.

Q: What is the maximum thickness available for TA4 Titanium Alloy Sheet?

A: Sheets are available in thicknesses up to 50mm.
