TC21 Titanium Alloy Plate – High Performance Titanium Alloy Manufacturer in China – Copy

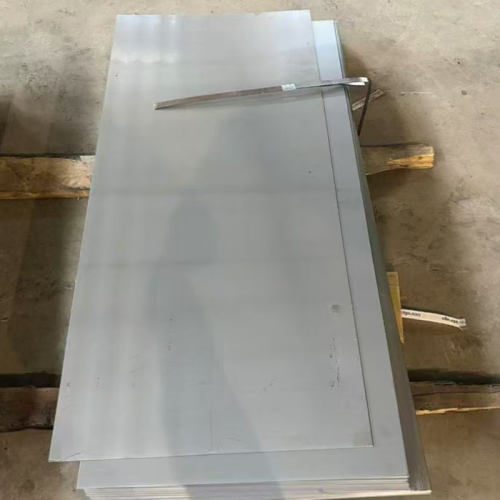

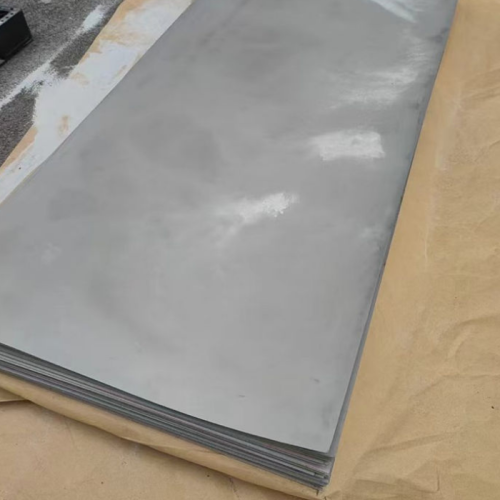

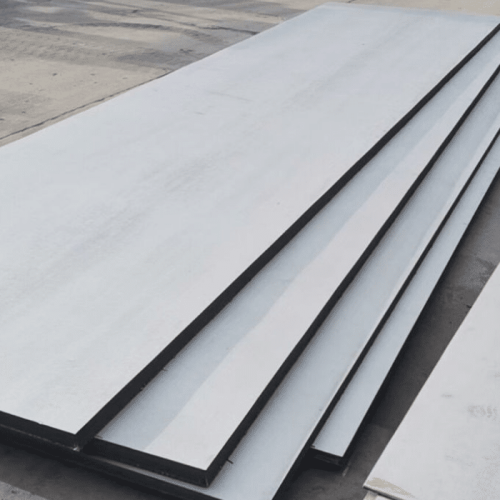

The TB6 titanium alloy sheet is a high-performance material known for its exceptional strength-to-weight ratio, remarkable corrosion resistance, and excellent mechanical properties. Commonly used in aerospace, medical implants, and industrial applications, it caters to environments that demand reliability, durability, and efficiency. Its versatility makes it ideal for sectors requiring lightweight, high-strength materials.

Price: Contact Us for a Custom Quote

For TB6 Titanium Alloy Sheet pricing, contact our sales team for a tailored quote based on your specifications and order volume.

Specifications of TB6 Titanium Alloy Sheet

Thickness: 0.5mm – 100mm
Width: Up to 2500mm
Length: Up to 6000mm
Surface Treatment: Cold rolled, hot rolled, polished surface or customer-specified finish available.

Key Features (Advantages)

High Strength-to-Weight Ratio: Ideal for weight-sensitive applications like aerospace and automotive industries.
Corrosion Resistance: Performs reliably in harsh environments, including exposure to saltwater and chemicals.
Excellent Weldability: Easily processed with suitable methods, making it versatile for various structural applications.
Biocompatibility: Suitable for medical and implant applications due to its compatibility with human tissues.

Applications

Aerospace: Aircraft frames, turbine components, and engine parts.
Medical: Prosthetics, implants, and surgical tools.
Industrial: Chemical processing plants, desalination equipment, and heat exchangers.
Automotive: Sports car components and lightweight structures.

Chemical Composition

Element	Percentage (%)
Titanium (Ti)	Balance
Vanadium (V)	10.0 - 11.0
Iron (Fe)	1.6 - 2.2
Aluminum (Al)	2.6 - 3.4
Oxygen (O)	≤ 0.13

Mechanical Properties

Property	Value
Tensile Strength	≥ 1200 MPa
Yield Strength	≥ 1100 MPa
Elongation	≥ 10%
Hardness	HB 340-380

Chemical Properties

TB6 titanium alloy sheets are compatible with various welding methods, including TIG (Tungsten Inert Gas) and laser welding. It is advisable to use properly controlled environments to prevent contamination during welding. The material is easy to machine and form, provided adequate tools and techniques are employed for titanium alloys.

Things to Note (Limitations)

While TB6 titanium alloy offers excellent high-temperature strength and corrosion resistance, its performance may degrade slightly in environments exceeding 400°C or when in prolonged exposure to strong oxidizing acids. Care should be taken to select suitable environments for application.

Corrosion Data

Environment	Corrosion Rate (mm/year)
Atmospheric (Urban)	< 0.01
Seawater	< 0.02
Mild Acid (pH 4-6)	0.05

Best Welding and Manufacturing Practices

Recommended welding methods include TIG and plasma arc welding. Use filler materials compatible with titanium alloys. Cold forming is suitable for sheets of titanium, but hot forming is advised for thicker plates. Machining requires sharp tools and low speeds.

What Customers Say

Frequently Asked Questions

Q: What is the difference between TB6 titanium alloy and other materials?

A: TB6 titanium alloy is specifically designed for superior strength, corrosion resistance, and biocompatibility, making it outperform many other metals in critical applications.

Q: Can TB6 titanium alloy be used in seawater environments?

A: Yes, its excellent resistance to saltwater corrosion makes it ideal for use in marine applications.

Q: What is the melting point of TB6 titanium alloy?

A: The alloy has a melting point of approximately 1670°C, suitable for high-temperature applications.

Q: Is TB6 titanium alloy suitable for machining?

A: Yes, with the proper tools and techniques, TB6 titanium alloy sheets can be precision machined for various projects.

Q: What makes TB6 titanium alloy unique for medical applications?

A: Its high strength, low density, and biocompatibility render it a superior choice for medical implants and surgical instruments.
