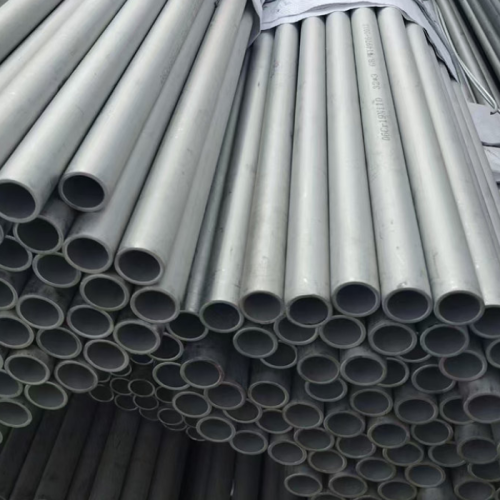

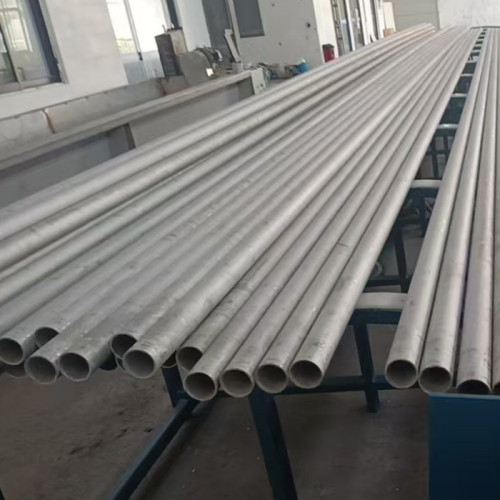

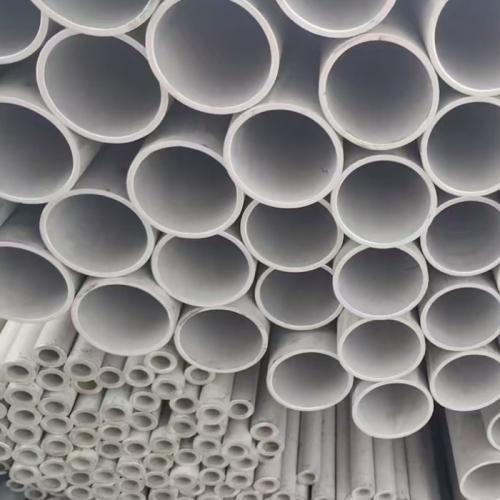

L605 Cobalt Alloy Pipe – Top Cobalt Alloy from China Manufacturer
The L605 Cobalt Alloy Pipe, a premier cobalt-based alloy, is engineered for extreme environments requiring exceptional strength and corrosion resistance. Known for its cobalt-chromium-nickel composition, this alloy excels in high-temperature applications, making it a top choice for aerospace, medical, and industrial sectors. Its robust cobalt alloy properties ensure durability and reliability in demanding conditions.
Price: Contact Us for a Custom Quote
For a detailed quote on L605 Cobalt Alloy Pipe, please contact our sales team. Pricing terms are tailored based on order volume, specifications, and delivery requirements. Reach out today to discuss your needs.
Specifications
- Outer Diameter: 6 mm to 168 mm
- Wall Thickness: 0.5 mm to 20 mm
- Length: Up to 12 meters or customized
- Surface Treatment: Annealed, polished, or pickled
- Standards: ASTM B167, AMS 5580
Key Features (Advantages)
- High-Temperature Resistance: Maintains integrity up to 2000°F (1093°C).
- Superior Corrosion Resistance: Resists oxidation and chemical degradation.
- Excellent Mechanical Strength: High tensile and yield strength for structural reliability.
- Biocompatibility: Ideal for medical implants and devices.
- Versatile Fabrication: Supports welding, forming, and machining.
Applications of L605 Cobalt Alloy Pipe
L605 Cobalt Alloy Pipe is widely used across industries due to its cobalt alloy uses:
- Aerospace: Turbine blades, combustion chambers, and exhaust systems.
- Medical: Stents, orthopedic implants, and surgical instruments.
- Industrial: Heat exchangers, chemical processing equipment, and power generation components.
- Energy: Gas turbine components and nuclear reactor parts.
Chemical Composition
| Element | Percentage (%) |
|---|---|
| Cobalt (Co) | Balance |
| Chromium (Cr) | 19.0–21.0 |
| Nickel (Ni) | 9.0–11.0 |
| Tungsten (W) | 14.0–16.0 |
| Iron (Fe) | ≤3.0 |
| Manganese (Mn) | 1.0–2.0 |
| Carbon (C) | 0.05–0.15 |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 1000–1400 MPa |
| Yield Strength | 600–900 MPa |
| Elongation | 20–40% |
| Hardness (HRC) | 25–35 |
Chemical Properties
The cobalt-chromium alloy in L605 Cobalt Alloy Pipe offers excellent resistance to acids, alkalis, and oxidative environments. It performs well against sulfuric and hydrochloric acids but may require caution in highly concentrated alkaline solutions. Environmental restrictions include avoiding prolonged exposure to molten salts or halogen-rich atmospheres.
Things to Note (Limitations)
While L605 Cobalt Alloy Pipe is highly durable, certain limitations should be noted:
- High-Temperature Fatigue: Prolonged exposure above 2000°F may reduce fatigue life.
- Brittle in Specific Conditions: Susceptible to embrittlement in sulfur-rich environments.
- Cost: Higher cobalt alloy price compared to stainless steel alternatives.
Corrosion Data for L605 Cobalt Alloy Pipe
| Environment | Corrosion Rate (mm/year) |
|---|---|
| Atmospheric (Rural) | <0.01 |
| Seawater | 0.02–0.05 |
| 10% Sulfuric Acid | 0.1–0.3 |
| 5% Hydrochloric Acid | 0.2–0.5 |
Best Welding and Manufacturing Practices
L605 Cobalt Alloy Pipe supports various welding methods, including:
- TIG Welding: Preferred for precision and clean welds.
- Plasma Arc Welding: Suitable for thin-walled pipes.
- Electron Beam Welding: Ideal for high-strength joints.
Fabrication techniques include cold forming, hot forging, and machining. Preheating to 300°F (149°C) is recommended to prevent cracking during forming. Post-weld annealing enhances weld integrity.
What Customers Say About
Frequently Asked Questions
Q: What is the difference between L605 and Stellite?
A: L605 is a cobalt-chromium-nickel alloy optimized for high-temperature strength, while Stellite is typically used for wear-resistant coatings.
Â
Q: What industries use L605 Cobalt Alloy Pipe?
A: Aerospace, medical, energy, and chemical processing industries rely on its strength and corrosion resistance.
Â
Q: Can L605 be used in acidic environments?
A: Yes, it resists sulfuric and hydrochloric acids, though caution is needed in highly concentrated solutions.
Â
Q: How does L605 compare to nickel-cobalt alloys?
A: L605 offers superior high-temperature strength, while nickel-cobalt alloys may excel in specific corrosive environments.
Â
Q: Is L605 environmentally restricted?
A: Avoid prolonged exposure to sulfur-rich or halogen-rich environments to prevent degradation.
