Understanding 18-8 Stainless Steel: A Comprehensive Guide to Steel Grades and Applications

From industrial machinery to consumer products, stainless steel is a material that is trusted around the world and known for its durability, resistance to corrosion, and versatility. However, in this article, we will focus on one of its alloy grades, 18-8 stainless steel. Among its numerous alloys, 18-8 is most popular due to its balanced makeup and performance. In this article, we will explore the core properties, benefits, and possible applications of 18-8 and understand why it is so popular and widely used across multiple industries. We will list down its unique adaptations, which make it the go-to material for most engineering and manufacturing challenges.

What is 18-8 Stainless Steel?

18-8 stainless steel is a type of austenitic stainless steel that contains approximately 18% chromium and 8% nickel. This composition enhances its strength, resistance to oxidation, and ability to withstand harsh environments. With its diverse applications, 18-8 stainless steel has carved a niche for itself in various industries. Its reliable and robust nature greatly helps it withstand harsh environments.

Composition and Properties of 18-8 Stainless Steel

The name 18-8 stainless steel comes from its elements; it contains 18% chromium (Cr) and nickel (Ni) in 8% concentration. Those properties are essential for its use. Cr enhances corrosion resistance by producing a protective oxide film while Ni provides toughness and maintains mechanical structure at different temperatures. This means that it does not get rusty and stained in different environments, such as water and even chemicals.

The versatility of this type of stainless steel is incredible. It merges strength with flexibility making it perfect both for household and industrial works. It can be found at kitchenware, as well as medical equipment, which is due to its durability and ease to clean. This type of steel is also used widely because it does not get oxidized even at high temperature.

Difference Between 18-8 and Other Steel Grades

The 18-8 grade falls under the 300 series of stainless steels. It contains 18% chromium and 8% nickel. This mix gives it a good balance between strength, ductility, and corrosion resistance. Like other grades, it has its advantages and disadvantages when compared with grades 304 and 316:

• 304 Stainless Steel: 18-8 and 304 are often used interchangeably since their chemical compositions are equivalent (18% chromium, 8% nickel). However, the term “18-8” could also denote different versions that can pass for this basic composition but do not comply with the specifications of 304-grade. Both are versatile and widely used in environments where moderate corrosion resistance is needed.
• 316 Stainless Steel: 316 has additional elements compared to 304. It has about 2%-3% molybdenum which improves its resistance to pitting and crevice corrosion, which is particularly useful in chloride-rich or harsh-chemical environments. 18-8 can be used interchangeably in various applications but 316 excels in marine and chemical processing environments.
• 430 Stainless Steel: 430 is entirely different compared to 18-8. It has no nickel content and classifies as a ferritic stainless steel. Even though it is more economical, its lack of corrosion resistance and ductility makes it inferior to 18-8. It also tends to rust more easily under certain conditions.

Technical Parameters Comparison

Understanding the differences helps select the most appropriate stainless steel grade for specific environmental and operational requirements.

Popular Applications for 18-8 Stainless Steel

As a result of having outstanding corrosion resistance, strength, and versatility, 18-8 stainless steel is employed in many diverse sectors. It is utilized for utensils, cookware, and food processing equipment in kitchens since it can withstand acids and cleaning substances. Also, 18-8 stainless steel’s strength and anti-rust properties make it suitable for fasteners like nuts and bolts, which require dependability in varying environmental conditions. Such properties, along with being non-reactive, make it possible for the steel to be used in medical tools, surgical devices, and equipment, ensuring safety.

18-8 vs 304 Stainless Steel: What Are the Differences?

Composition

The difference between 18-8 and 304 stainless steel is primarily an issue of their chemistry. Both are austenitic stainless steels with 18% chromium and 8% nickel, but 304 stainless steel usually has stricter controls on other constituents like carbon, manganese, and silicon. This difference makes a more reliable metallurgical outcome for advanced performance in demanding applications.

Strength and Corrosion Resistance

The corrosion resistance and strength offered by both 18-8 and 304 stainless steel are approximately the same. Nevertheless, 304 stainless steel is known to be more preferable and practical because it is designed to work well in more extreme environments like hot and chemically contaminated areas. In this regard, 18-8 types “general” are not as good.

Applications

18-8 stainless steel is a broad term that may refer to many alloys of the 300 series. Therefore, 304 and 302 are included. However, 304 stainless steel has gained so much popularity because of its use in high-performance industries like food processing, medical equipment, and construction. It is the default choice when accuracy and toughness are needed because of its specialized properties.

Chemical Composition: Chromium and Nickel Levels

The chromium composition of stainless steel 304 is usually within the range of 18%-20%, with nickel coming in at around 8%–10.5 %. These elements are critical to the corrosion resistance and overall durability of the alloy. Chromium bonds with oxygen, and rusts free of the iron alloy. Nickel bonds into the alloy with greater toughness and strength, enhancing resistance to severe heat and mechanical stresses. All the components cited above account for the superiority offered by 304 stainless steel in extreme conditions.

Comparing the Corrosion Resistance of 18-8 and 304

The corrosion resistance of 18-8 stainless steel and 304 stainless steel, both containing chromium (around 18%) and nickel (8-10.5% for 18-8), can be effortlessly evaluated because their compositions differ very little. These metals, due to their composition, resist oxidation and form of corrosion in many different ecological systems.

The reasoning behind why 304 exhibits higher corrosion resistance boils down to lower allowable composition variants and higher quality standards. As an example, stainless 304 undergoes rigorous filtering in regard to specification fulfillment which safeguards sustainment in chloritic or weak acidic environments. While both grades are suitable for most general-purpose applications, 304 is more favored in harsh conditions where internal corrosion, including but not limited to, pitting and crevice corrosion is a concern.

Key Technical Parameters:

• Chromium Content: Approximately 18% (both 18-8 and 304)
• Nickel Content: 8-10.5% (both 18-8 and 304)
• Corrosion Resistance: Both grades exhibit uniform resistance to corrosion, but 304 stainless steel outperforms in harsher situations.
• Protective Oxide Layer: A rust-resistant chromium oxide layer formation is the basis in both metals.

In the end, whether one opts for 18-8 or 304 stainless steel is determined by the application’s needs and the setting it will be placed in. With critical components, 304 is preferred because of its greater reliability and consistency over time.

Choosing Between 18-8 and 304 Stainless Steel for Your Needs

I consider the application that I need to use the alloy for before choosing between 18-8 and 304 stainless steel. Both alternatives have excellent durability and resistance to corrosion, but I know 304 performs better in more aggressive environments because of a slight increase in its chromium and nickel percentage. When my work involves an intense environment or greater damaging stress, I go for 304 because of its dependability. At reasonable environmental and moderate place demands, 18-8 suffices and is economical. In conclusion, one has to find the proper balance between performance expectations and economic capabilities.

How Does 18-8 Compare With 316 Stainless Steel?

18-8 stainless steel cannot withstand corrosion as effectively as 316 stainless steel, in particular when dealing with chlorides and harsh chemicals. While 316 is useful for seawater applications and chemical processing due to its superior corrosion resistance from its molybdenum content, 18-8 is more economical and general purpose. In comparison to 18-8, 316 performs better under extreme stress conditions requiring enhanced durability, resistance to pitting, or cracking. The choice, however, depends on the environmental requirements along with the budget of the project.

The Role of Molybdenum in 316 Stainless Steel

Molybdenum imparts a 316 stainless steel considerable improvement in strength, especially when used in harsh conditions due to its corrosion resistance properties. This steel is often exposed to aggressive chemicals like chlorides, which inflict pitting and crevice corrosion; however, with the addition of molybdenum, it allows the structure to endure stress in marine environments, chemical processing plants, and other high-intensity conditions. Molybdenum also contributes to the alloy’s durability under high temperatures, which further enhances its performance in demanding tasks. The content of molybdenum in 316 stainless steel is also relatively high as compared to the 18-8 stainless steel, with 2%-3%, enabling it to retain integrity in lactating environments.

Applications Favoring 316 Stainless Over 18-8

1. Marine Environments:

316 stainless steel is the preferred choice for boat fittings and offshore oil platforms because of their underwater pipelines. 316 stainless steel is resistant to salt and chloride corrosion due to its 2-3% molybdenum content.

2. Chemical Processing Plants:

Due to their great resistance against harsh chemicals, acids, and high temperatures, 316 stainless steel is used for heat exchangers, chemical tanks, and other process equipment.

3. Medical Equipment:

316 stainless steel, being biocompatible and corrosion resistant, makes it ideal for surgical implants and medical devices, chemicals that require sterilization, and durability.

4. Food and Beverage Industry:

Due to their resistance to pitting caused by acidic and salty foods, 316 stainless steel is used in food processing facilities bordering dairy and brewing.

5. High-Temperature Applications:

Stainless steel 316 is reliable in furnace components, heat resistant containers and even in exhaust systems due to their structural integrity at a whopping 800 degrees celsius.

The use of 316 stainless steel in these examples ensures challenging performance, durability, and safety. This is the case for manufacturers and engineers.

Understanding the Corrosion Resistance of 18-8 Stainless Steel

18-8 stainless steel is a broader term assigned to various alloys like 304. The impressive corrosion resistance it offers is greatly due to its form of passive oxide layer that shields it from rust and surface degradation, enabled with high chromium content. The 8% nickel further augments the resistance of the alloy when it comes into contact with mildly acidic or damp environments. Although the stainless steel alloy performs remarkably in multiple conditions, continuous exposure to acidic or chloride environments has a high tendency to encourage pitting and crevice corrosion. Adopting proper measures on maintenance would maximize the reliability, longevity, and overall application.

Factors Affecting the Resistance of Stainless Steel

From my research, the following primary reasons, alongside many others, formulate the overall resistance of stainless steel. First, the chromium level fortifies the material by forming protective oxide layers stemming from high temperatures, thus safeguarding the metal from corrosion and improving resistance. Second, certain places have an issue-freedom claim regarding stainless steel, where it is exceptionally resistant towards neutral atmospheres with a pinch of acid; however, in chloride-breeding or potent acidic scenarios, problems like pitting can arise. Finally, proper maintenance alongside surface treatment like cleaning boosts its performance and lifespan by removing impurities, drastically extending durability and performance. As for resistance, corrosion, and the right stainless steel grade, ensure the optimal and maximum level of age and wastage increase.

Environmental Conditions Impacting 18-8 Stainless Steel

Stainless 304 and 304L alloys, commonly referred to as 18-8 stainless steel, perform superbly well across myriad environments, owing to their high composition of chromium (generally 18%) and nickel (usually 8%). But certain specific environmental factors can impact its performance:

1. Resistance to Corrosion in Chloride Environments

18-8 stainless steel is made with a passive chromium oxide layer that mostly protects it from rusting; however, it is vulnerable to pitting and crevice corrosion when chloride ions are present. The presence of salt (sodium chloride) in industrial applications and costal region areas serves as an example of where this can happen. For marine and chloride applications, less ideal grades are frequently suggested by engineers, including 316 stainless steel, because it contains molybdenum.

2. Behavior under chill temperatures:

18-8 stainless steel can tolerate nominal temperatures except intermittent severe exposure, shrugging off up to 870°C (1598°F) and up to 815°C (1499°F) with continuous service. In industrial furnaces, if the temperatures are exceedingly high, longer durations of exposure will result in reduced corrosion resistance due to carbide precipitation. The use of low-carbon variants such as 304L lessens this risk.

3. Acidic and Alkaline Environments

Under mildly acidic or alkaline conditions like exposure to diluted nitric acid or ammonium hydroxide, this stainless steel will endure. However, hydrochloric acid or sulfuric acid in concentrated form tends to be corrosive. Such cases require coatings or other alloys like 316 or more advanced nickel-based alloys.

Technical conditions for reference:

• Chromium content: 18-20%
• Nickel content: 8-10.5%
• Optimal performance of maximum chloride concentration: ~200 ppm (parts per million)
• Range of temperature (Continuous use): -196°C to 815°C (-321°F to 1499°F)
• Pitting resistance equivalent number (PREN): ~18 (not high chloride environments without molybdenum additives).

Regular maintenance which consists of cleaning to get rid of chloride or sulfate contaminants is essential for the 18-8 stainless steel to keep its integrity and performance over time.

Ensuring Longevity and Performance in Corrosive Environments

Regarding maintaining the performance and lifespan of 18-8 stainless steel in corrosive environments, I apply a set of robust methodologies. Firstly, through regular maintenance and inspection check-ups, there can be constant removal of contaminants such as chlorides and sulfates that can lead to corrosion. Moreover, I assist in staving off extreme conditions through aid alloys and protective coatings. Devoted to routine inspections, I, along with my steel companions, make sure to take immediate action the instant any indications of fatigue show up, ensuring the stability and sustainable performance result.

Why Choose 18-8 Stainless Steel Fasteners?

Because of the materials used, the durability and strength, along with corrosion resistance, 18-8 stainless steel bolts are widely used. These fasteners withstand outdoor and indoor applications because they comprise 18% chromium and 8% nickel. Furthermore, they can also endure different temperatures, making them ideal for long term use. Together with an appealing look, their versatility can withstand construction and marine environments, covering different industries.

Advantages of Using Stainless Steel Fasteners

1. Corrosion Resistance

Stainless steel containing above 10.5% chromium is considered to be of unmatched stamina when it comes to enduring rust and corrosion as it can easily form an oxide protective layer. This grade of steel is best suited for regions with moisture, chemicals, and saltwater.

2. Durability

Stainless steel 304 and 316 commonly used grades stainless steel grades can be deformed under a great deal of mechanical load, but tend to retain their shape. 304 and 316 saws have tensile strengths of 515 and 585 MPa respectively.

3. Temperature Resistance

Stainless steel fasterners possess remarkable properties at various extremes when it comes to temperature, these include freezing as well as high heat regions. Grade 316 is known to endure between -150°F (-101°C) and 1500°F (815°C).

4. Aesthetic Appeal

In design-sensitive projects, devices, stainless steel fasteners are a preferred choice due to their sleek and shiny finish, which adds to the professional impression of the project.

5. Low Maintenance

In terms of corrosion resistance and tarnish, stainless steel fasteners are known to endure these vigorously and in turn, require minimal maintenance over their lifespan, thus reducing overall sustain consumed when used over the long-term.

6. Environmentally Friendly

Stainless steel fasteners are made of up to 60% recycled material which makes them an eco friendly choice for green industries as all grades of steel are recyclable.

These qualities underscore why stainless steel fasteners are widely recognized as a reliable and efficient solution across various technical and industrial applications.

Common Uses in Various Industries

Due to their resistance to corrosion and reliability, stainless steel fasteners are crucial parts across the mechanical industries. As an example:

1. Construction and Infrastructure

Stainless steel fasteners are a fundamental part of the infrastructure industry, such as the construction of bridges, highways, and buildings. Their resistance to corrosion makes them suitable for coastal applications. Additionally, their tensile strength, ranging from 500 MPa to 1500 MPa, facilitates resistance to the violent loads.

2. Automotive and Transportation

Stainless steel fasteners are significant in the fastening of many parts, such as engines, chassis, and suspension systems in cars, trains, and even aircraft. Due to the ,300 series and grade (e.g., 304 and 316) grade fastenersto ability to resist extreme wear and tear, and extreme temperatures of -100°F to 1500°F, they are heavily relied upon in the automotive industry.

3. Marine Industry

Docks, Ships, and other types of underwater equipment utilize stainless steel fasteners. 316 stainless steel alloys are superior in resistance to corrosion. Since they contain 2%-3% molybdenum, they are safe from chloride induced corrosion stemming from seawater.

4. Food and Beverage Processing

In hygienic areas of food processing plants, fasteners have to be made out of stainless steel grade 304 or 316 due to their corrosion resistance and lack of reaction with acidic or alkaline elements. These fasteners are also compliant with FDA regulations and are able to endure sterilization.

5. Energy and Power Generation

Stainless steel fasteners are very important in the equipment of renewable energy sources like wind turbines and solar panels because of their outdoor endurance. These fasteners are used in the oil and gas industry because they are able to withstand high pressures and temperatures, following industry standards of ASTM A193.

The above said examples illustrate the wide ranging and unique features that stainless steel fasteners have concerning modern industries, all the while maintaining safety standards for longevity.

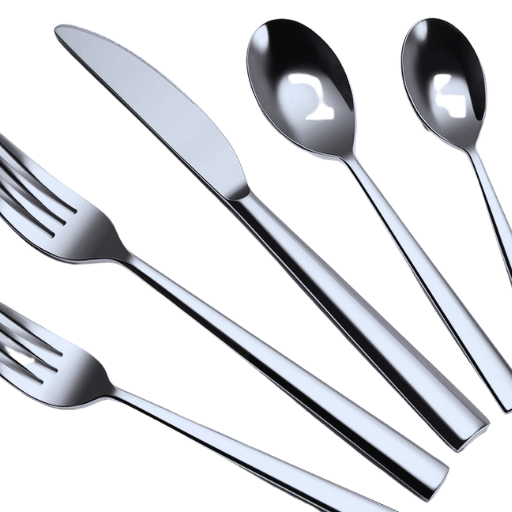

How Do Steel Grades Affect the Quality of Flatware?

The grade of steel used has a tremendous effect on the quality, durability, and even the design of a set of flatware. Premium flatware is crafted from high-grade stainless steels, which are 18/10 (with 18 percent chromium and 10 percent nickel), since they have great corrosion resistance, strong flatware elements, and high retention of shine. Lower grades, like 18/0, are also much more affordable because they have less nickel, but the lack of luster and moderate resistance to staining or rust make them mediocre. The alloy steel grade not only influences the performance and durability of the flatware, but also the attractiveness, thus ensuring meeting every style and usage preference.

The Importance of Stainless Steel Grade in Flatware

While doing my research on the flatware, I found out that stainless steel grade plays a massive role in determining the quality of woodworking tools. For example, understanding the effect of a grade such as 18/10 with its excellent shine, corrosion resistance, and added nickel content, premium flatware greatly assists in grasping the part stainless steel grade plays in retaining polish. Quite the opposite, 18/0 lower grades lack nickel, thus making them affordable, but duller and mediocre when it comes to the resistance to staining. It was interesting to find out that the right flatware can depend on how one prioritizes looks versus budget and basic functionality.

Comparing Durability and Appearance in Different Types of Stainless Steel

When evaluating distinct grades of stainless steel in terms of their durability and aesthetic aspects, it’s absolutely important to look at the composition and technical details of each grade. For instance:

• 18/10 Stainless Steel: Includes 18% chromium and 10% nickel. It provides outstanding resistance to corrosion and has a polished, shiny, long-lasting durability. This wrought steel grade is ideal for coarse and flatware and for cookware where beauty and toughness matter.
• 18/8 Stainless Steel: Contains 18 percent chromium and 8 percent nickel. It is known for great protection from rust and staining, slightly less luxurious finish than 18/10 but still, highly durable for everyday use.
• 18/0 Stainless Steel: Has 18 percent chromium and 0 percent nickel, making it cheaper and providing a fair amount of rust protection. It is less durable and easier to stain, but reasonable for general uses. With its lack of nickel, this wrought steel grade becomes softer, giving it a lower rubix finish, which brings down its elegance and appeal for premium applications.

References

1. 18-8 Stainless Steel: A Guide of Properties and Applications
2. 18-8 Stainless Steel: Properties and Applications
3. Stainless Steel Guide

Frequently Asked Questions (FAQ)

Q: What is 18-8 stainless steel?

A: 18-8 stainless steel is a grade of stainless steel that contains approximately 18% chromium and 8% nickel content. It is part of the 300 series and is known for its excellent corrosion resistance and durability.

Q: How does 18-8 stainless steel compare to 304 stainless steel?

A: 18-8 and 304 stainless steel are often considered interchangeable as 18-8 is a general term for 304 stainless steel. Both have similar chromium and nickel content, providing good corrosion resistance and strength.

Q: What are the main applications of 18-8 stainless steel?

A: 18-8 stainless steel is widely used in the fabrication of cookware, cutlery, and utensils due to its corrosion-resistant properties. It is also used in industrial applications, including the production of stainless steel sheets and pans.

Q: Why is 18-8 stainless steel considered austenitic?

A: 18-8 stainless steel is classified as austenitic stainless steel due to its high chromium and nickel content, which gives it a non-magnetic structure and excellent corrosion resistance.

Q: What makes 18-8 stainless steel resistant to corrosion?

A: The corrosion resistance of stainless steel, including 18-8, is attributed to its high chromium content, which forms a protective oxide layer on the surface when exposed to air and moisture.

Q: Can 18-8 stainless steel withstand high temperatures?

A: Yes, 18-8 stainless steel can withstand high temperatures and maintain its strength and corrosion resistance, making it suitable for applications that involve heat exposure.

Q: Is 18-8 stainless steel suitable for use in environments with chlorides?

A: While 18-8 stainless steel offers good corrosion resistance, it may be susceptible to pitting and crevice corrosion when exposed to high chloride environments. In such cases, grades like 316 stainless steel, which have higher resistance, might be preferred.

Q: How does the British Stainless Steel Association categorize 18-8 stainless steel?

A: The British Stainless Steel Association categorizes 18-8 stainless steel as part of the 300 series stainless steel, specifically as a type of steel with austenitic properties, known for its versatility and corrosion resistance.

Q: What is the tensile strength of 18-8 stainless steel?

A: The tensile strength of 18-8 stainless steel is typically high, making it an ideal choice for structural applications where durability and strength are essential.

Q: Does 18-8 stainless steel require annealing?

A: Annealing can be performed on 18-8 stainless steel to relieve stress and enhance its mechanical properties, although it is not always necessary depending on the specific application and fabrication process.
