Metal products are considered one of the essentials of contemporary industries, with their strength, rust resistance, and ability to be easily shaped into many different forms. None of the many existing types is more famous than the DX54D sheet plate – an important sheet for both simple roof covering and sophisticated modern solutions such as terraces and roofs. However, what is it that sets DX54D apart from everything else? This manual addresses the distinctive features of galvanized steel DX54D, its advantages, and areas of application, which are helpful for specialists and enthusiasts in this field. This text is a complete guide for those interested in including it in an upcoming work or augmenting current knowledge on galvanized steel.

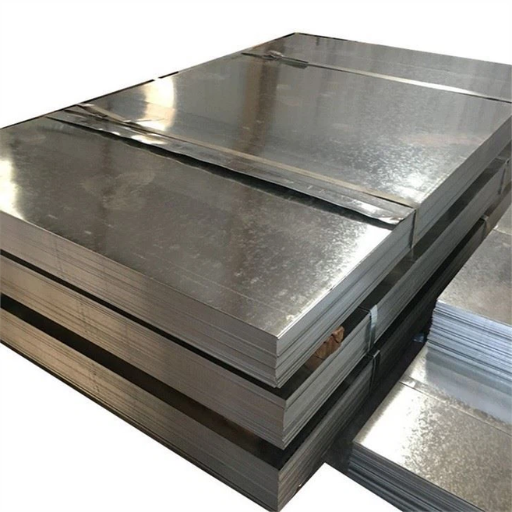

What is DX54D Galvanized Steel Sheet?
Sheet plate galvanised steel DX54D is coated with zinc, which makes it a durable steel sheet. Due to its high formability, this steel can be used primarily in fabrication work. This equipment includes the automotive, structural, and domestic appliances industries. The presence of the zinc layer aids in preventing rust, and these materials can be used internally and externally where there is wetness or humidity.
Exploring the Chemical Composition of DX54D
DX54D is an elite category of galvanized steel that owes its distinctive characteristics to the special chemical composition of the steel. As per the specified standard, its constituents comprise the following elements within the given limits:
- C (Carbon): maximum of 0.12%
- Mn (Manganese): maximum of 0.60%
- P (Phosphorus): maximum of 0.10%
- S (Sulfur): maximum of 0.045%
- Al (Aluminium): minimum 0.015% (this is added for deoxidation and as an aid in formability)
- Si (Silicon): maximum of 0.50%
Such chemical equilibrium can preserve the steel’s excellent drawability, making it applicable in deep drawing operations with increased durability and relatively wear or corrosion resistance due to the zinc coating. Furthermore, incorporating these elements in small quantities aims to enhance the weldability of the DX54D and paint for its excellent application in different purposes.
In addition to the basic elements, galvanization is the preferred rust prevention technique because a layer of zinc coats the steel. Zinc content is given within specified limitations in essential industries, such as EN 10346, which makes it ready for indoor and outdoor operations. These aspects of the chemical composition greatly assert the worth of the DX54D sheet plate in high-end industries.
Comparing DX54D with DX53D and Other Steel Grades
| Parameter | DX54D | DX53D | Other Steel Grades (General) |
|---|---|---|---|
| Formability | Excellent for deep drawing | High, suitable for complex shapes | Varies by grade |
| Tensile Strength (MPa) | 260–360 | 270–370 | Depends on specific grade |
| Yield Strength (MPa) | 120–220 | 140–260 | Varies widely |
| Elongation (%) | ≥ 36 | 30–40 | Varies by application |
| Corrosion Resistance | High due to zinc coating | High with galvanized options | Varies by coating |
| Weldability | Excellent, low carbon content | Excellent, low carbon content | Varies by composition |
| Applications | Automotive, appliances, construction | Automotive, appliances, construction | Industry-specific |
| Surface Coatings | Zinc, zinc-aluminum, zinc-magnesium | Zinc, zinc-aluminum, zinc-magnesium | Varies by grade and need |
| Chemical Composition | Low carbon, Mn, Si, Ti | Low carbon, Mn, Si, Ti | Varies by standard |
| Standards | EN 10346, ASTM A653 | EN 10346, ASTM A653 | EN, ASTM, or other standards |
The Role of Zinc Coating in DX54D
To counter corrosion in DX54D steel through adequate galvanic protection, a zinc coating is applied to help prevent corrosion and thereby increase the structural service life of the material. This form of coating is created through the complex galvanization processes, making the steel suitable for internal and external applications. The following are some essential features and advantages of zinc coating in DX54D steel:
- Corrosion Protection – Zinc coating is a galvanic layer that protects the steel under the zinc layer when moisture and other elements that contribute to oxidation are present.
- Surface Finish and Aesthetics—The even distribution of the zinc layer makes the surface look smooth and pleasant, more appropriate for applications requiring beauty.
- Paint and Coating Improvement—Such a zincile coating provides paint and other surfaces with appreciable adhesion, allowing DX54D to paint and coat or protect for decorations.
- Andre and Uniform Coatings—System have found, in particular, that this has led to a strict enclosing tendency in terms of zinc coating shapes, with accurate performance and introspection.
- Increased Durability levels—The application of zinc coating spreads tolerance to the erosion of the steel against wear and tear and corrosion, specifically in marine, industrial, or humid conditions.
All the benefits above are beneficial for incorporating the zinc layer into DX54D or choosing this material over others in many sectors. Also, some alterations can be made to steel to improve the galvanized DX54D sheet plate.
Why Choose DX54D Galvanized Steel?
The DX54D sheet plate that meets the set standard is the best option for critical applications where corrosion resistance and durability are of primary importance. It applies to building works, car manufacturing, and related industries since it guarantees durability even in harsh conditions. Besides, the zinc layer also covers the base, which enhances durability and reduces repair expenses. In essence, DX54D just suffices in esteemed quality and a high degree of utility in a wide selection of applications.
Benefits of Corrosion Resistance in Galvanized Steel
| Key Benefit | Description |
|---|---|
| Corrosion Protection | Zinc coating shields steel from moisture and oxygen. |
| Sacrificial Anode Effect | Zinc corrodes first, protecting underlying steel. |
| Long Lifespan | Lasts 50+ years in average environments. |
| Low Maintenance | Requires minimal upkeep over its lifespan. |
| Cost-Effective | Affordable compared to other corrosion-resistant materials. |
| Durability | Withstands harsh environments and physical damage. |
| Simple Inspection | Coating strength is visually assessable. |
| Zinc Patina Formation | Develops a protective layer, slowing corrosion further. |
| Environmentally Friendly | Fully recyclable material. |
Understanding the Formability of DX54D Sheet Plate
The DX54D finely coated sheet metal is made for maximum extensibility, which is why it is perfect for various shaping processes, either the material itself or the depth of the draw is greater than usual. It flows easily due to its high amount of ductility and, of course, its surface, which is even as a laminate would be, to facilitate bending of the parts involved in some shapes without, for example, cracking of the elements involved in the process.
A lot of new work has been done recently so that DX54D conforms to present industry regulations and can provide a yield of tolerance to stress and deformation, which lies within the range of 140-300 MPa and an elongation of approximately 36-44%, depending on the thickness of the sheet plates. It therefore withstands significant deformation without breaking down even during the shaping process. In addition, a continuous coat of zinc protects the surface from any kind of corrosion even after the shaping process.
The formability and practical usage or cases have proven that DX54D is most effectively used in the design and manufacture of vehicles, wherein high precision in the pressing and forming is fundamental. Since the DX54D can keep the roughness and mechanical characteristics to the same degree under external influence, especially mechanical loadings, it has earned the trust of industries that demand high quality and flexibility. This single or combination of characteristics improves work efficiency and reduces scrap, with consistent progress in commercial and industrial applications reaching satisfactory levels of work.
Applications in Automotive and Home Appliances
The DX54D sheet plate is highly preferred for various manufacturing industries that manufacture automotive body components and offline housing appliances like washing machines and refrigerators due to its highly formable nature and because it meets the dual requirements of performance and appearance of the flat product.
How is DX54D Galvanized Steel Produced?
The DX54D sheet plate is produced using the hot-dip galvanizing process. Zinc layers the metallurgical surface of steel when it is immersed in the melted metal. This corrosion-free, clear, dry surface allows any work to be done on it. The weld is then left in the air to prevent overheating, and to cool the paper quickly, the squeegees are lowered or put out. This technique does not compromise the material’s formability but makes it even more helpful in different situations.
The Hot-Dip Galvanizing Process
The steel is immersed in molten zinc in hot dip galvanizing to form a protective coat. Before proceeding, I clean the steel’s surface, because this would allow the uniting of the two surfaces: zinc and the coated steel. Once appropriately coated, the steel is left to cool, after which I examine the coating to check that it has been significantly covered up with zinc all over its surface. A coat applied in this way ensures that the usefulness of the steel is not compromised by rust or chipping.
Ensuring Quality Control in Production
Possessing strict quality standards in manufacturing processes involves adopting a consistent qualitative process approach. Thus, five essential factors that ensure quality control in the process of hot-dip galvanizing are provided below;
- Preparing the Surface
Sufficient cleaning of the steel surface during the different stages, such as degreasing, pickling, and fluxing, allows for adequate wetting of steel with zinc. In engineering practice, more than 20% of complaints reported for coatings result from inadequate surface preparation.
- Controlling the Bath Temperature
Proper control of the operating temperature of the bath with the molten zinc, which is usually between 830 and 860 Degrees F (443 and 460 degrees Celsius), is maintained to ensure an even thickness of the coating layer, and the requisite geometry of the defects is avoided.
- Interlayer Inspection of Coating Thickness
The periodic checking of the applied zinc coating using magnetic thickness gauges guarantees compliance with the ASTM specifications required to attain the desired durability. The recommended coating thickness varies from 2.0 mill inches (50 microns) to 5.0 mill inches (125 microns), depending upon the purpose of the steel.
- Testing of Moisture
Such a test is necessary to assess the zinc coating’s ability to stretch without causing damage or detachment.
- Examination at the End
A trained observer examines the end product, looking for consistency, evidence of dripping, and smoothness in general. Visual examination helps to avoid most surface flaws before sending the steel for further usage; that is, about 90% of defects are detected by means of this method.
These quality control procedures ensure that the galvanized steel produced is both utilitarian and satisfies customer needs among other industrial requirements; thus, is fit for purpose.
Differences Between Pre-painted and Non-pre-painted Steel
| Parameter | Prepainted Steel | Non-Prepainted Steel |
|---|---|---|
| Coating Process | Factory-applied, uniform coating | Requires on-site painting |
| Durability | Enhanced corrosion and UV resistance | Prone to faster wear and corrosion |
| Aesthetic Options | Wide range of colors and finishes | Limited or requires additional painting |
| Environmental Impact | Eco-friendly, low emissions | Higher VOC emissions during painting |
| Cost Efficiency | Higher upfront cost, lower maintenance | Lower initial cost, higher maintenance |
| Lifespan | 50+ years in most environments | 15-20 years, depending on conditions |
| Inspection | Consistent quality, easy to assess | Quality varies with application |
| Lead Time | Longer due to customization | Shorter, readily available |
| Applications | Ideal for roofing, appliances, and HVAC systems | General construction and industrial use |
What are the Product Specifications for DX54D?
DX54D, the unique steel used in the ultra-deep canvas stamping processes, is completely non-crystalline and lends itself to extreme deformation. Its main characteristics are as follows:
- Stress at the yield point: maximum 280 MPa
- Tensile stress: maximum 400 MPa
- Elongation properties: minimum 37% (up to 0.8 thickness)
- Finish: Users may opt for any finish they prefer, ranging from normal to exceptional finishes
- The range of thicknesses: In most cases, it ranges from 0.30 mm up to 3.00 mm
- Coatings: Normally provided in the form of zinc and iron or zinc plus iron to offer improved protection from rust.
dx54d sheet plate. Strictly, consumers making heavy loads demanding products and exporting them strictly to a customer would require such product characteristics.
Analyzing Mechanical Properties of DX54D sheet plate
| Property | Details |
|---|---|
| Yield Strength | 120–220 MPa |
| Tensile Strength | 260–350 MPa |
| Elongation at Fracture | 34–36% |
| Brinell Hardness | 90–120 HB |
| Rockwell Hardness | 50–65 HRB |
| Vickers Hardness | 100–130 HV |
| Anisotropy (R-Value) | ≥ 1.6 |
| Strain Hardening Index | ≥ 0.18 |
| Elastic Modulus | 210 GPa |
| Chemical Composition | Low carbon, Mn ≤ 0.6%, Ti ≤ 0.3% |
| Formability | Excellent for deep drawing and complex shapes |
| Corrosion Resistance | High, due to zinc or alloy coatings |
Understanding ASTM and ISO Standards
Two organizations that need little introduction are ASTM—American Society for Testing and Materials—and ISO—International Organization for Standardization. The standards of these two organizations define materials for production, including steel. The DX54D steel sheet complies with both ASTM and ISO standards, making it usable in most fields.
ASTM Coating Specifications for DX54D
The ASTM standards concerning coated steel products intend to maintain strength and functionality without failure in varied situations. For instance, ASTM specifications like ASTM A653/A653M are frequently applied to describe zinc-coated and galvanized materials for the materials or products in question. Such specifications include:
- Yield Strength of Alloys: DX54D usually has a yield strength of less than 140MPa, which indicates excellent ductility.
- Tensile Strength in MPa: It is between 270 and 400 MPa, which refers to its high tensile capacity.
- Elongation Values after Break: The minimum elongation is about 38% or more, allowing the material to be formed and drawn.
- Coating Weight for Zinc: Depending on the conditions of use, the coating weight may vary from Z100 to Z600.
ISO Norms of DX54D
ISO norms have been developed for international incorporation of norms. As artwork for products such as cold rolled coated steels, including DX54D, reference is made to ISO 3575 and 4998 assurance. This specification includes mechanical properties, coating selection, and appearance.
An example of the ISO norms is as follows:
- Cohesive Zone with Respect to Coating: More correctly, this concerns the thickness, the Degree of Zinc Iron, or the Thickness of the Organic Coating’s Resistance to Corrosion of the Material.
- Both operators and manufacturers can enhance their finishing options beyond the standard surface. If the client specifies a surface finish different from the standard, three surfaces are available: A, B, and C surfaces, respectively.
- Dimensional Controls: The requisite dimensions are prepared within tolerances and fit well in strict manufacturing dimensions.
Combining the requirements above assures that the DX54D complies with the standard requirements of the production process and operation. The adherence to the ASTM and ISO specifications by the manufacturer as well as the customer facilitates the use of the DX54D sheet plate due to its uniformity, strength, and ability to reach high levels of mechanical performance without risk.
Choosing the Right Supplier for Your Needs
While looking for the appropriate supplier, prefer the one with relevant and trusted certifications, competitive prices, responsive customer service, and trustworthiness in consistently supplying high-quality DX54D sheet plates.
How to Utilize DX54D Galvanized Steel Sheet in Roofing?
The use of galvanized steel sheets of DX54D sheet plate is widespread, particularly in roofing. This is primarily because of their high resistance to corrosion and strength. Before putting that oxide-coated sheet to use, measure the roof carefully and cut the sheet into the correct sizes. Use the proper fasteners to ensure a steel sheet is stable on a frame roofing installation; this means fixing the sheet safely and water-tightly onto the structure. Such that there is an overlap between the edges of two adjacent sheets, thereby preventing water from entering between the sheets for reinforcement properties. Any additional protective layers or seals may be used where necessary to prolong the roof’s useful life. Simple procedures like washing the roof and checking it for wear and tear will also help to prolong its useful life for many years.
Advantages of Using Galvanized Steel in Roof Construction
| Key Advantage | Description |
|---|---|
| Corrosion Resistance | Zinc coating protects against rust and weathering. |
| Durability | Lasts 50+ years in most environments. |
| Low Maintenance | Requires minimal upkeep over its lifespan. |
| Cost-Effective | Affordable initial cost and long-term savings. |
| Heat Reflectivity | Reflects heat, improving energy efficiency. |
| Structural Integrity | Strong and reliable for load-bearing applications. |
| Ease of Installation | Ready-to-use, no additional coatings needed. |
| Eco-Friendly | Recyclable and sustainable material. |
Installation Tips for Roofing Sheets
- Take the Necessary Measurement and Appropriate Planning
Measure and sketch out how each roof dx54d sheet plate shall be used before it is installed. This is important for reducing material waste to the barest minimum and ensuring proper positions during installation.
- Appropriate Use of Fasteners
Use appropriate fasteners for roofing sheets, such as special screws with rubber grommets that are self-tapping to the prepared surface. These fasteners produce enough pull-out force to withstand water entry at such points.
- Connecting the Sheets in a Proper Manner
At least one ridge or, as advised by the manufacturer, should overlap the edges of the maintenance roofing sheets. This will, in turn, avoid water ingress and improve the roof’s strength.
- Providing Accurate Inclination and Slants
The slope and inclination at which the sheets are installed must be the optimum 5 – 10 degree slope for functional drainage mechanisms. For almost horizontal roofs, more overlap or compound sealing should be used to avert any pooling effect.
- Coatings after Completion
Now that the sheets are mounted, it’s time to coat them, applying a layer of protective substances like anti-rust and water-resistant paints or sealant to prolong the roof’s performance against various hazards such as rust and sunshine.
Maintaining the Corrosion Resistance of Your Roof
To preserve the corrosion resistance of my roof, I try to perform timely check-ups, after any heavy rain or storms, to assess for any damage or wear and tear of the roof surface. I also make it a habit to clear the roof of any debris, dirt, and leaves since such materials may allow water to be trapped on the roof. Furthermore, protective coatings such as anti-corrosion paint or sealant are reapplied as per the manufacturer’s prescriptions where applicable. I must take the above underlying measures so that the Samsung Dx54d Sheet Plate Roof and the rest that are subjected to the varying elements remain in place for a long time.
References
- Determination of the yield loci of four sheet materials (AA6111-T4, AC600, DX54D+Z, and H220BD+Z) – Academia.edu
- Galvannealed steel sheets: Topics by Science.gov – Science.gov
- Properties of DX54D, DP800 and AA6016 with thickness (t) – ResearchGate
Frequently Asked Questions (FAQ)
Q: What is DX54D Galvanized Steel Sheet?
A: DX54D Galvanized Steel Sheet is a type of coated steel sheet known for its excellent corrosion resistance and formability. It is commonly used in various applications, including automotive parts, agricultural equipment, and construction.
Q: How does DX54D+Z Galvanized Steel Sheet differ from other galvanized steel products?
A: DX54D+Z Galvanized Steel Sheet offers enhanced corrosion resistance and formability compared to other galvanized steel products. It is particularly suitable for applications requiring deep drawing and high-formability.
Q: What are the main applications of galvanized steel plates?
A: Galvanized steel plates are widely used in construction, automotive manufacturing, agricultural equipment, and home appliances such as washing machines and refrigerators due to their excellent corrosion resistance and durability.
Q: How is hot-dip galvanized steel produced?
A: Hot-dip galvanized steel is produced by immersing steel in a bath of molten zinc, creating a galvanized layer that provides excellent corrosion resistance. This process ensures a strong bond between the zinc coating and the steel substrate.
Q: What are the benefits of using a galvanized steel coil in construction?
A: Galvanized steel coils offer excellent corrosion resistance, durability, and low maintenance, making them ideal for construction applications. They are also versatile and can be easily formed into various shapes.
Q: How does pre-painted galvanized steel differ from regular galvanized steel?
A: Pre-painted galvanized steel is coated with a layer of paint for additional protection and aesthetics. This coated steel sheet type provides excellent corrosion resistance and an attractive finish, making it suitable for visible applications.
Q: What is the significance of the “z275” marking on galvanized steel products?
A: The “z275” marking indicates the weight of the zinc coating, measured in grams per square meter. A Z275 galvanized steel product has a zinc coating weight of 275 g/m², offering significant corrosion protection.
Q: What role does carbon steel play in the composition of galvanized steel sheets?
A: Carbon steel is the base material for galvanized steel sheets. It provides strength and structural integrity, while the galvanized layer offers corrosion resistance.
Q: Can DX54D galvanized steel be used for welding applications?
A: Yes, DX54D galvanized steel can be welded, although precautions must be taken to manage the potential release of zinc fumes. Proper ventilation and safety equipment are essential during the welding process.
Q: What are the equivalent grades for DX54D in other standards?
A: Equivalent grades for DX54D may vary depending on regional standards, but they generally include similar specifications for coated steel sheets with comparable mechanical properties and corrosion resistance.
